Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

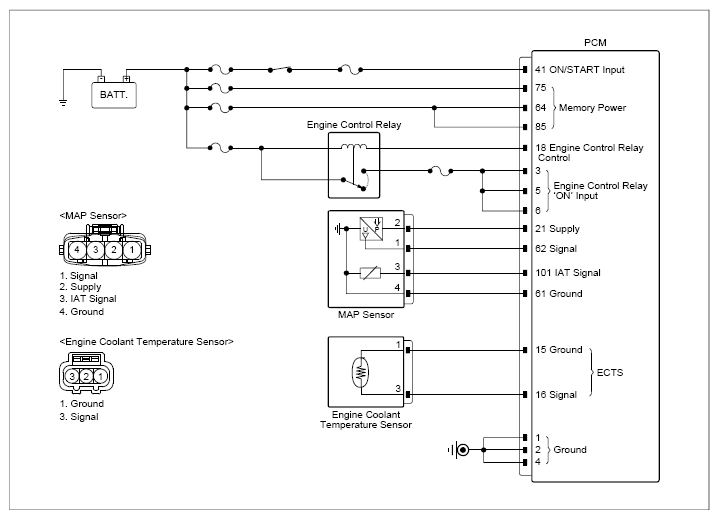

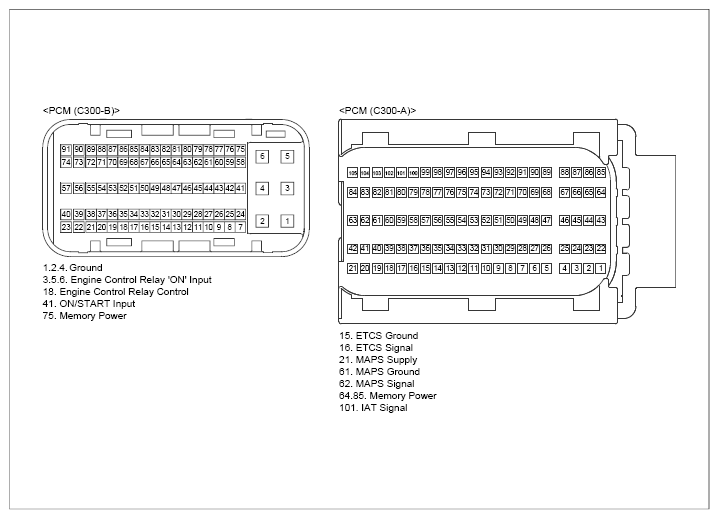

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECTS connector | 3 (signal) | Chassis ground | - | Approx. 5V |
| ECTS connector | 1 (ground) | Chassis ground | - | Approx. 0V | |
| MAPS connector | 3 (air temperature input) | Chassis ground | - | Approx. 5V | |
| MAPS connector | 4 (ground) | Chassis ground | - | Approx. 0V | |
|
ECTS connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| MAPS connector | 3 (air temperature input) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
