Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

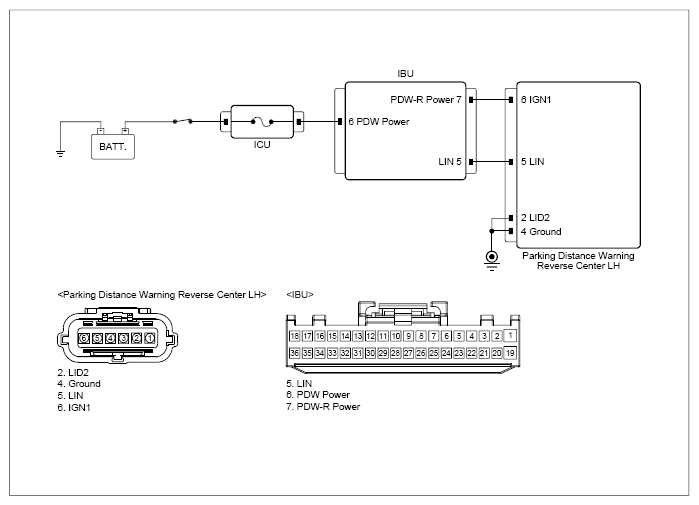

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
PDW reverse center LH connector | 6 (ignition1) | IBU connector | 7 (PDW-R power) | Approx. below 1Ω |
| PDW reverse center LH connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
|

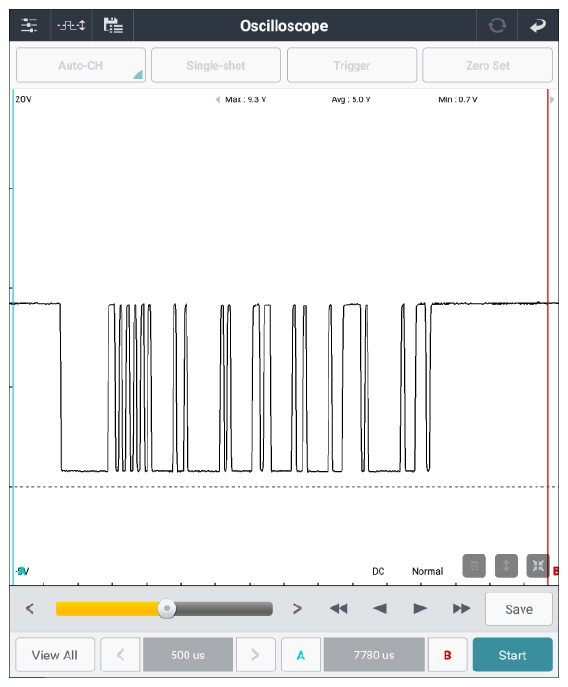

PDW reverse center LH connector | 5 (LIN) | Chassis ground | - | Fig. 1 |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
