Bearing Bracket & Shaft Assembly
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the bearing and shaft assembly (A) after loosening the bolts.
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.1 - 47.0 lb.ft)

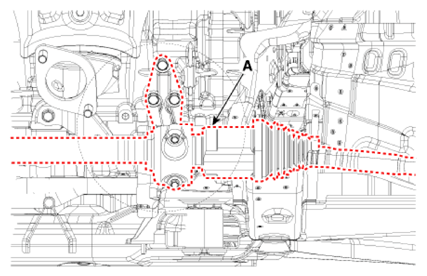

[GAMMA 1.6 T-GDI]
 Courtesy of KIA MOTORS AMERICA, INC.
|

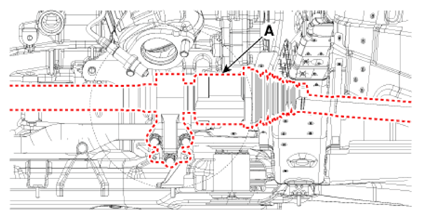

[NU 2.0 MPI ATKINSON]
 Courtesy of KIA MOTORS AMERICA, INC.
|
