Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

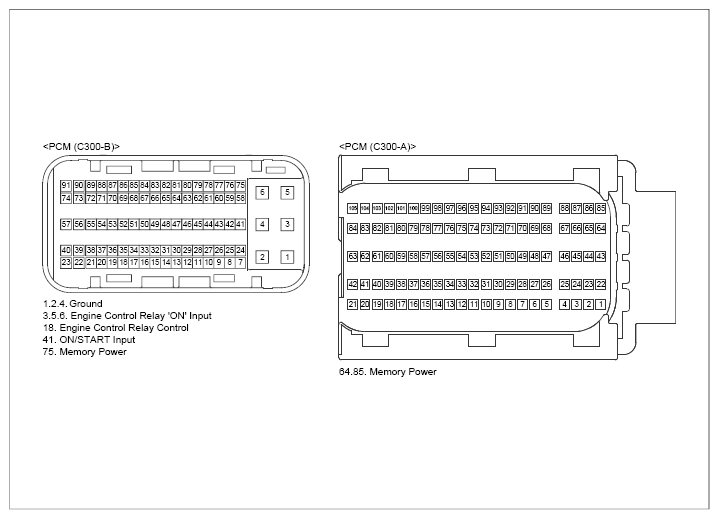

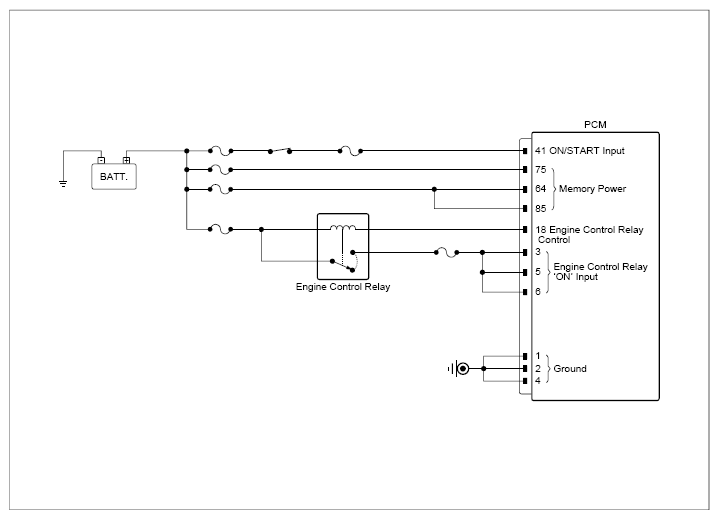

ECM/PCM connector | 64, 75, 85 (Memory power) | Chassis ground | - | Battery voltage |
|
ECM/PCM connector | 41 (ON/START Input) | Chassis ground | - | Battery voltage |
| 3, 5, 6 (Engine Control Relay 'ON' Input) | |||||
Good
- Go to "SYSTEM INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
