Circuit Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

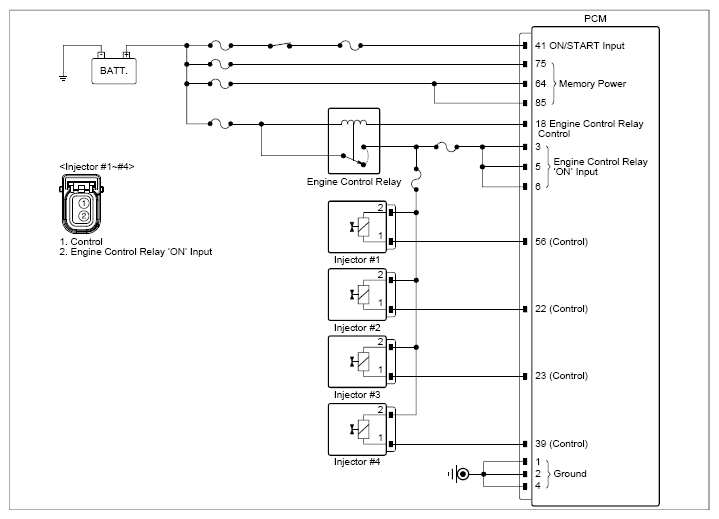

G13507063Courtesy of KIA MOTORS AMERICA, INC.

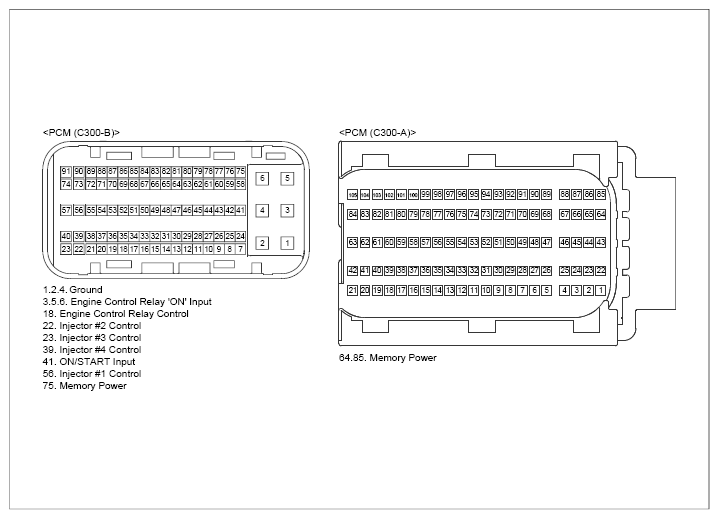

G13507064Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF" and disconnect injector #4 connector.
  2. Ignition "ON".
 Injector #4 connector 2 (power) Chassis ground - Approx. 12V
  1. Ignition "OFF" and disconnect injector #4 connector.
  2. Ignition "ON".
 Injector #4 connector 1 (control) Chassis ground - Approx. 5.76V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 Injector #4 connector 1 (control) Injector #4 connector 2 (power) ∞ (infinity)Ω

Good

No Good
