Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS/GDS.

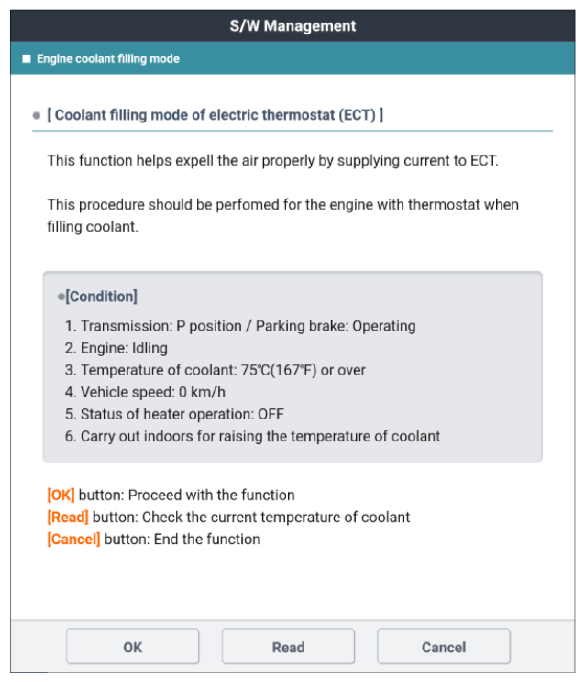

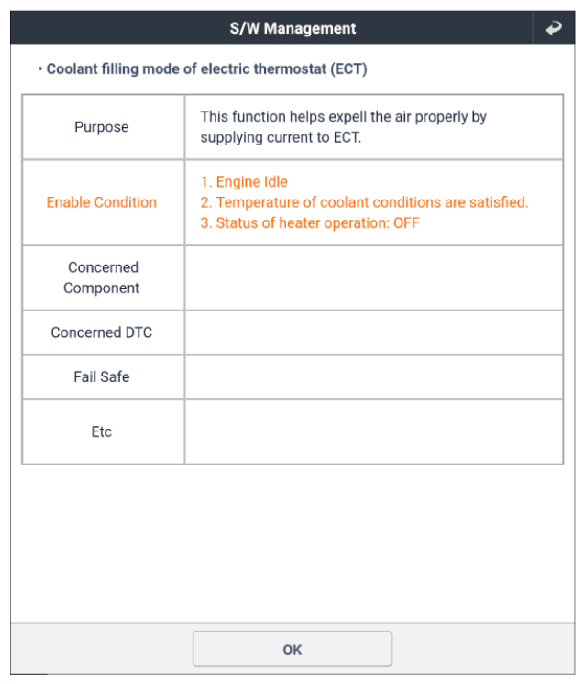

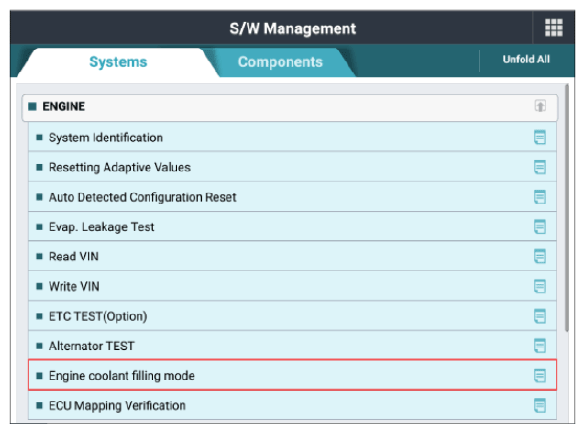

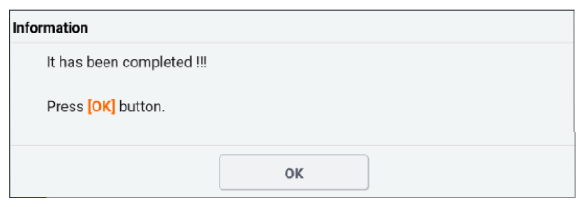

 Fig.1 to 4
G13507014Courtesy of KIA MOTORS AMERICA, INC.
G13507015Courtesy of KIA MOTORS AMERICA, INC.
G13507016Courtesy of KIA MOTORS AMERICA, INC.
G13507017Courtesy of KIA MOTORS AMERICA, INC.
