Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

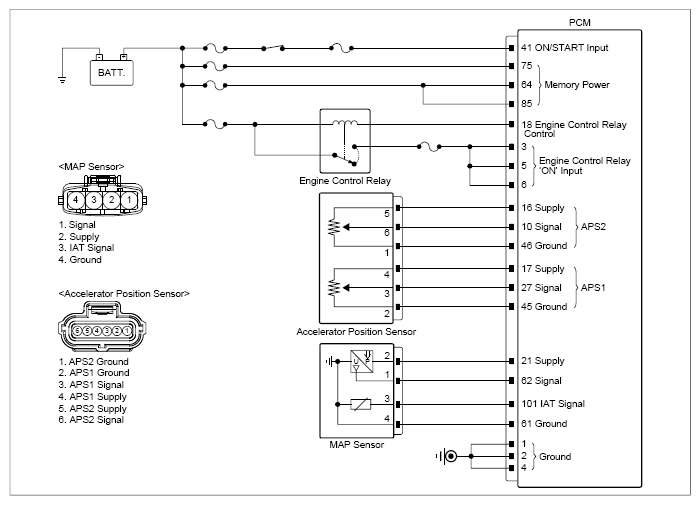

| APS1 Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
APS connector | 4 (APS1 supply) | Chassis ground | - | Approx. 5V |
|
APS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
APS connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω |
|
APS connector | 3 (signal) | Battery (+) terminal | - | ∞ (infinity)Ω |
|

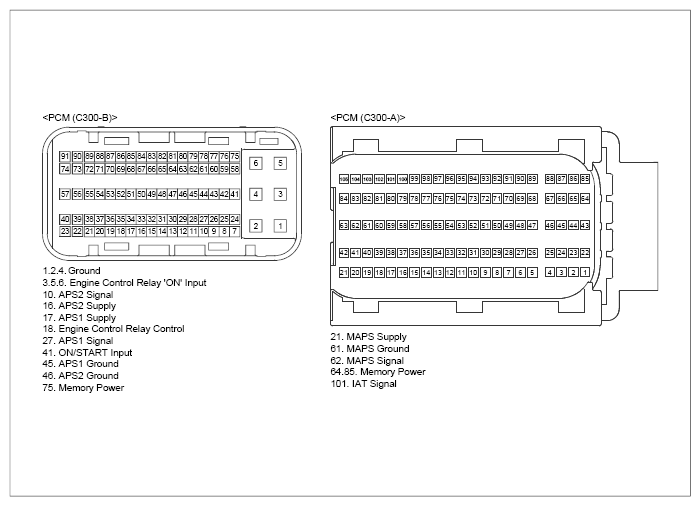

APS connector | 3 (signal) | ECM/PCM connector | 27 (signal) | Approx. below 1Ω |
| APS2 Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
APS connector | 5 (APS2 supply) | Chassis ground | - | Approx. 5V |
|
APS connector | 1 (ground) | Chassis ground | - | Approx. below 1Ω |
|
APS connector | 6 (signal) | Chassis ground | - | ∞ (infinity)Ω |
|
APS connector | 6 (signal) | Battery (+) terminal | - | ∞ (infinity)Ω |
|
APS connector | 6 (signal) | ECM/PCM connector | 10 (signal) | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
