Transaxle Mounting Bracket

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal.
  2. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - ENGINE ROOM UNDER COVER ")

  3. Remove the air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  4. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine control module (ECM).

    (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

  6. Remove the battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  7. Install the jack under the transaxle to support it.
    NOTE: Put the rubber block between the jack and transaxle to avoid damaging the transaxle.
  8. Remove the LH front wheel guard.

    (Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")

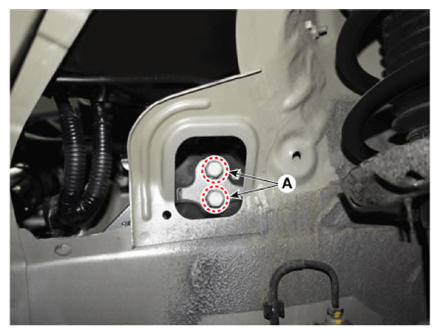

  9. Remove the transaxle support bracket mounting bolts (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G13482727Courtesy of KIA MOTORS AMERICA, INC.

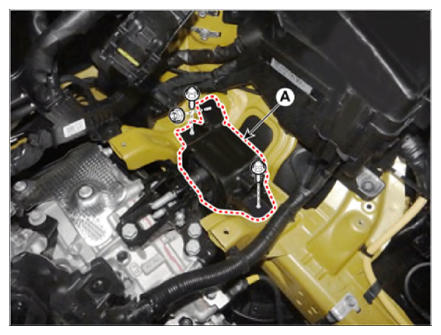

  10. Remove the transaxle mounting bracket (A).

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13482728Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
