Engine Mounting Bracket

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack under the edge of oil pan to support the engine.
NOTE: Put the rubber block between the jack and oil pan to avoid damaging the oil pan.

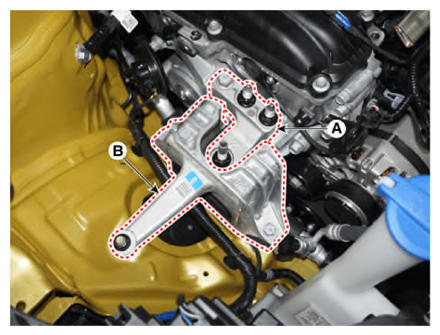

Remove the engine mounting support bracket (A).
Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)
Remove the engine mounting bracket (B).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
