Monitor KDS Data

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

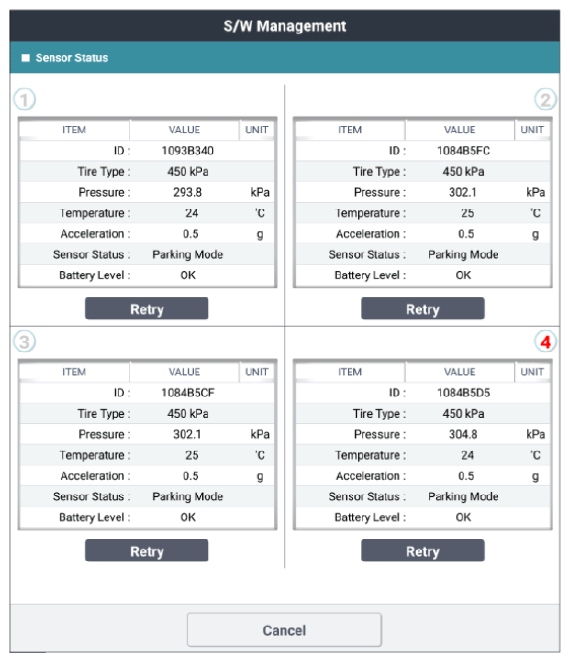

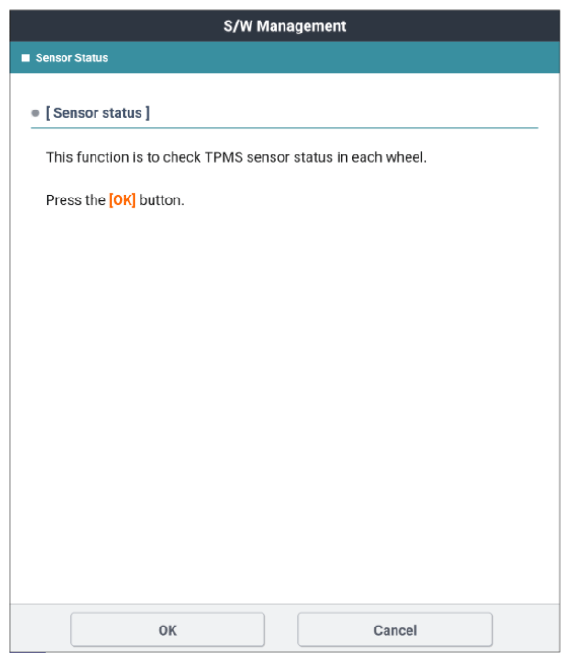

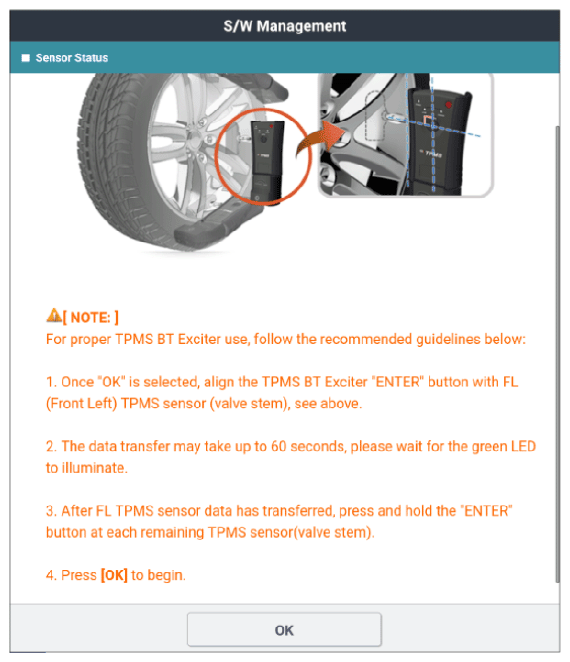

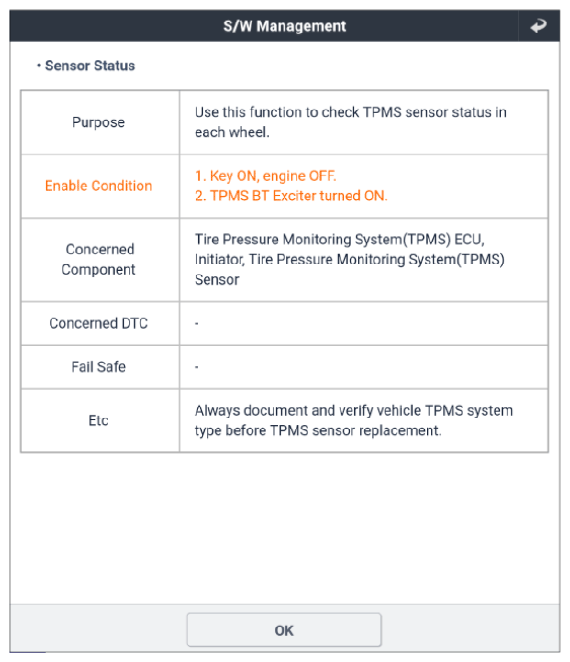

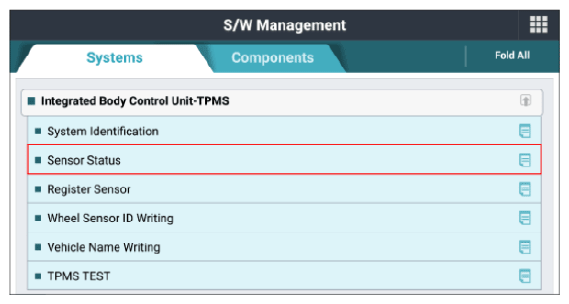

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 5

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	Inspection Procedure	Reference

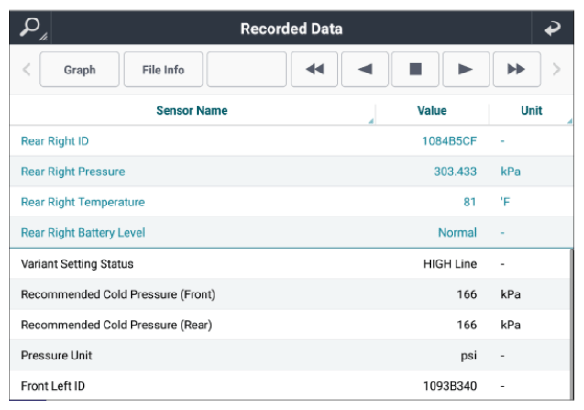

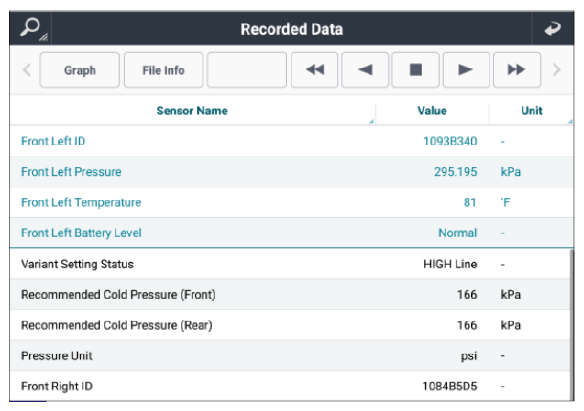

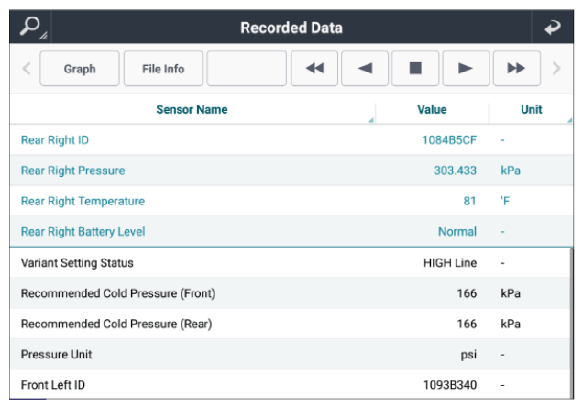

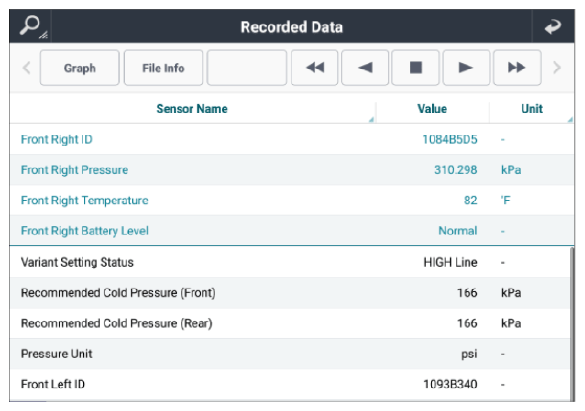

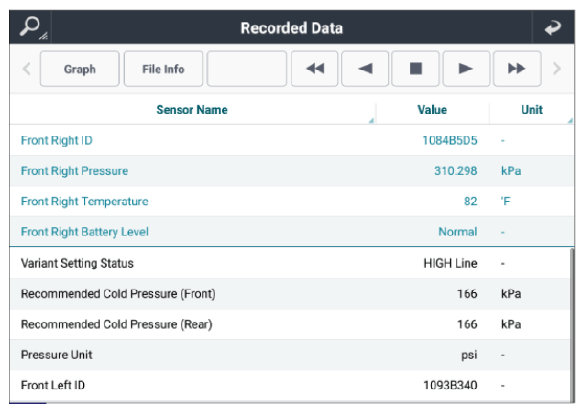

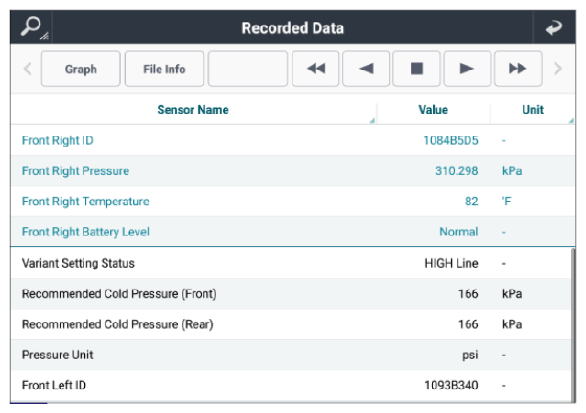

Ignition "ON". TPMS sensor wake-up.	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in TPMS's connector or was repaired and IBU memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing IBU, perform following "System Inspection" procedure.

No Good

Besides C166000, check the internal/external factors which could interfere with DTC, sensor status, and RF signal in the vehicle.
Repair or replace as necessary, go to "SYSTEM INSPECTION " procedure.
Perform "Register Sensor" in "Vehicle S/W Management" with KDS TPMS or drive vehicle with over 15.5 MPH (25 km/h) to complete "Auto Learning" and "Auto Location", after TPMS sensor is replaced.
