Monitor DTC Status
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

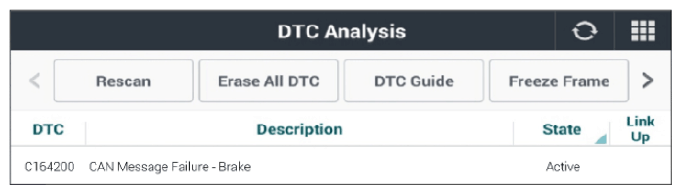

Fig.1 |
Active Fault
- Check DTCs related with CAN or signal of vehicle speed in the other system, such as EMS or HECU system. If there are the DTCs, repair them and then confirm deletion.
- Recheck TPMS system, if C164200 is still active DTC, go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- Go to "VERIFICATION OF REPAIR " procedure.
