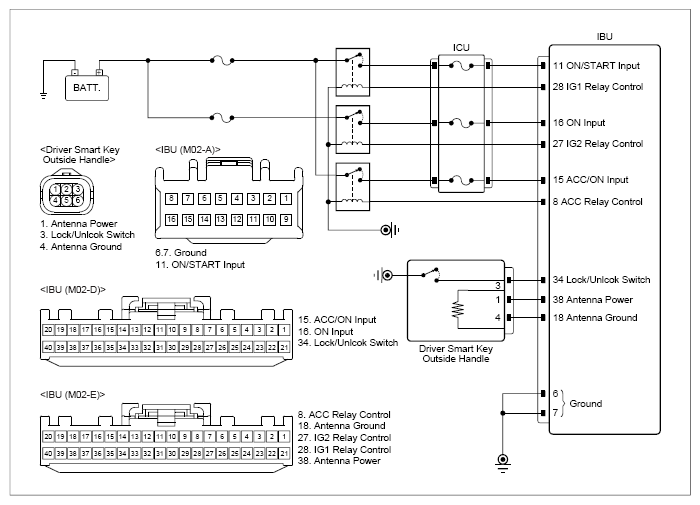

Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Driver door handle antenna connector | 1 (power) | Chassis ground | - | ∞ (infinity)Ω |
| Driver door handle antenna connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
| Driver door handle antenna connector | 1 (power) | IBU connector | 38 (power) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- If no problems were found with the circuits or connectors, replace the driver door handle antenna and go to "VERIFICATION OF REPAIR " procedure.
