Circuit Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

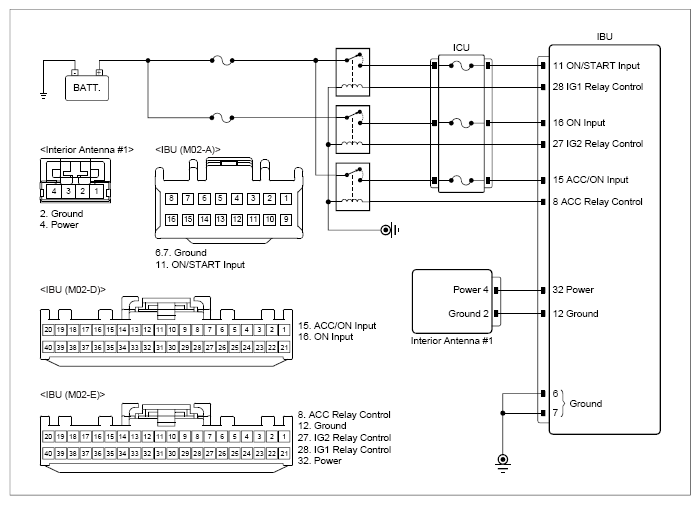

Interior Antenna #1 connector | 4 (power) | Chassis ground | - | ∞ (infinity)Ω |
| Interior Antenna #1 connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω | |
| Interior Antenna #1 connector | 4 (power) | IBU connector | 32 (power) | Approx. below 1Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
- If no problems were found with the circuits or connectors, replace the Interior Antenna #1 and go to "VERIFICATION OF REPAIR " procedure.
