Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX ")

  3. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  4. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

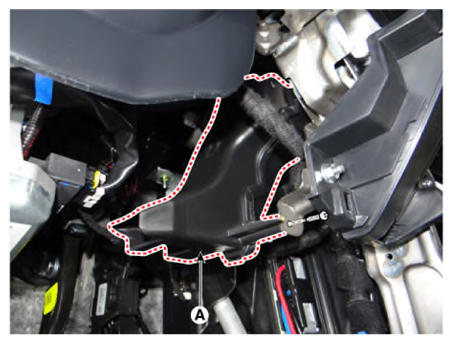

  5. Loosen the mounting screw and remove the driver shower duct (A).
    G13482318Courtesy of KIA MOTORS AMERICA, INC.

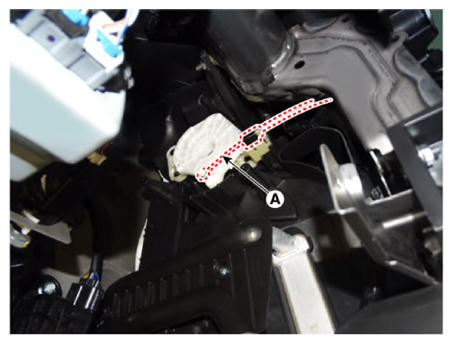

  6. Disconnect the manual controller cable (A).

    [Driver's]

    G13482319Courtesy of KIA MOTORS AMERICA, INC.

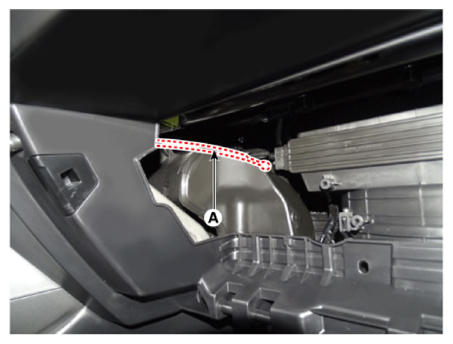

    [Passenger's]

    G13482320Courtesy of KIA MOTORS AMERICA, INC.

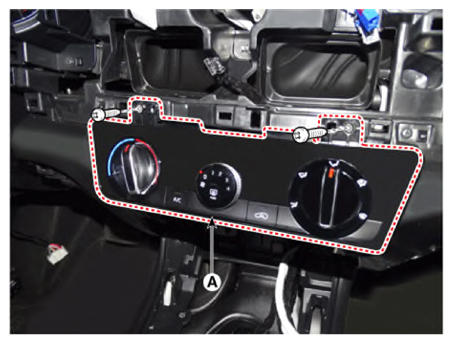

  7. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G13482321Courtesy of KIA MOTORS AMERICA, INC.

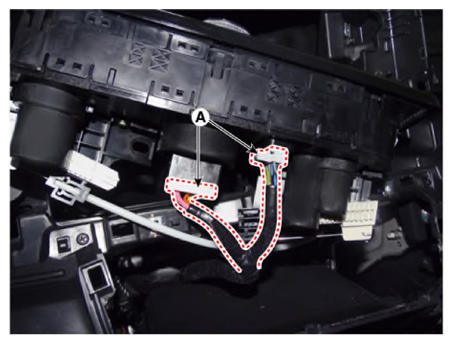

  8. Disconnect the A/C & heater control connectors (A).
    G13482322Courtesy of KIA MOTORS AMERICA, INC.
  9. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
