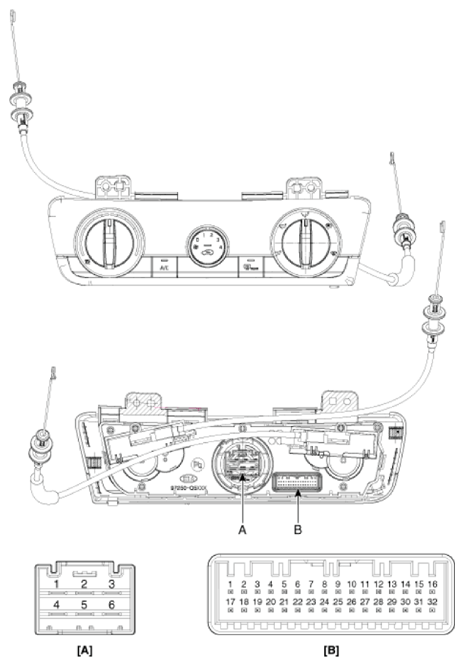

Components & Components Location: Components
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
| Connector | Pin NO | Function | Connector | Pin NO | Function |
|---|---|---|---|---|---|
| B | 1 | Battery (+) | B | 17 | IGN2 |
| 2 | ISG B+ | 18 | IGN1 | ||
| 3 | ILL+ (TAIL) | 19 | - | ||
| 4 | Sensor REF (+5V) | 20 | Max blower on signal | ||
| 5 | - | 21 | PTC Relay 3 | ||
| 6 | - | 22 | PTC Relay 2 | ||
| 7 | Intake actuator feedback | 23 | PTC on signal | ||
| 8 | Evaporator temperature sensor (+) | 24 | - | ||
| 9 | Ambient temperature sensor (+) | 25 | P_CAN High | ||
| 10 | Mode actuator (Vent) | 26 | P_CAN Low | ||
| 11 | Mode actuator (Def) | 27 | - | ||
| 12 | Heated IND. [Front] | 28 | ECV (+) | ||
| 13 | HTD (Rear defroster indicator lamp) | 29 | ECV (-) | ||
| 14 | Detent out (-) | 30 | - | ||
| 15 | Blower on signal to common | 31 | Sensor ground | ||
| 16 | ILL- (RHEO) | 32 | Ground |
