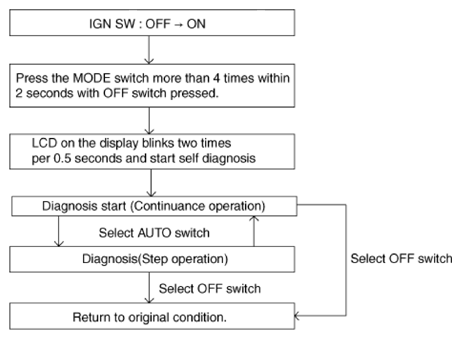

Self-diagnosis process.
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

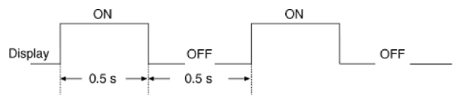

When operating the self-diagnostics, the below fault (self-diagnostics code) will blink at 0.5 seconds interval on the temperature display settings (driver's side only) and the remaining symbols are OFF.
Fault code display
Continuance operation: DTC code.
Courtesy of KIA MOTORS AMERICA, INC.

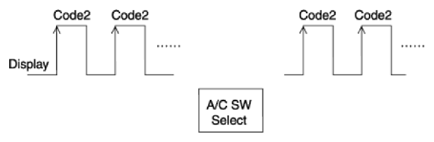

Continuance operation: DTC code.
Courtesy of KIA MOTORS AMERICA, INC.
STEP operation.
Normal or one fault code is same as a continuance operation.
