Description & Operation: Description

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

A spark plug is delivers electric current from an ignition system to the combustion chamber of an engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

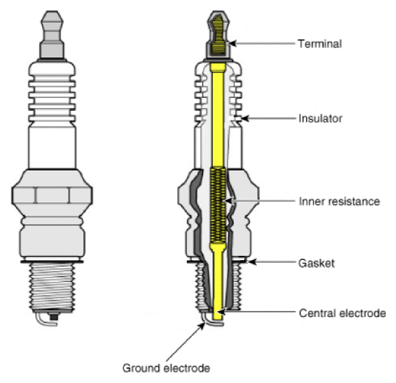

G13482843Courtesy of KIA MOTORS AMERICA, INC.
