Connector Assembly Status Test

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

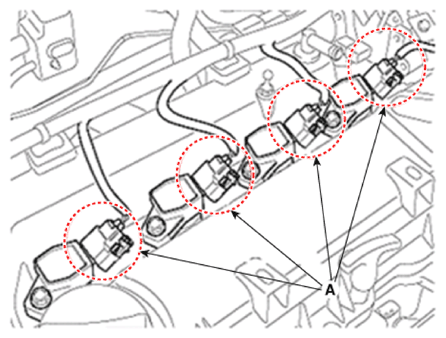

  1. Remove the connector (A) and reinstall it.
    G13482835Courtesy of KIA MOTORS AMERICA, INC.

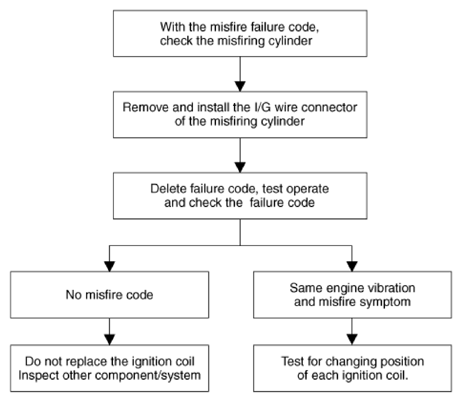

    G13482836Courtesy of KIA MOTORS AMERICA, INC.
