Starter Solenoid Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

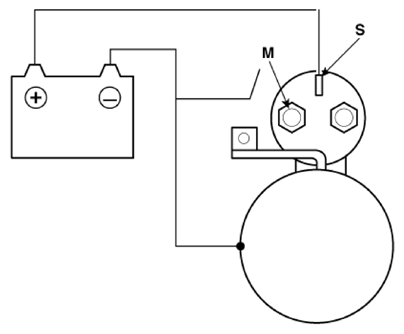

Disconnect the lead wire from the M-terminal of solenoid switch.
Connect the battery as shown. If the starter pinion pops out, it is working properly.
NOTE:
- To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.
Courtesy of KIA MOTORS AMERICA, INC.

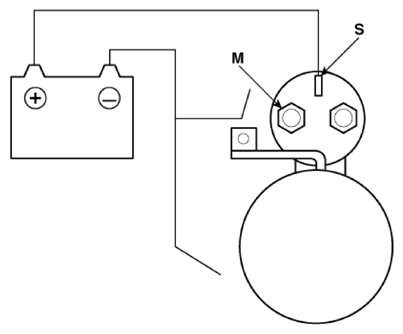

Disconnect the battery from the M terminal.
If the pinion does not retract, the hold-in coil is working properly.
NOTE:
- To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.
Courtesy of KIA MOTORS AMERICA, INC.

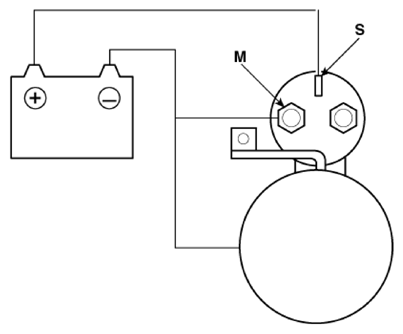

Disconnect the battery also from the body. If the pinion retracts immediately, it is working properly.
NOTE:
- To avoid damaging the starter, do not leave the battery connected for more than 10 seconds.
Courtesy of KIA MOTORS AMERICA, INC.
