Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the fuse box cover.

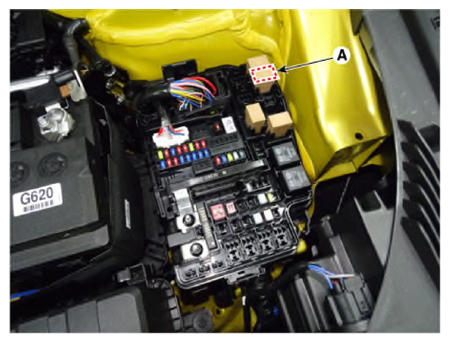

Remove the starter relay (A).

Courtesy of KIA MOTORS AMERICA, INC.

Using an ohmmeter, check that there is continuity between each terminal.

Terminal	Continuity
30 - 87	NO
85 - 86	YES

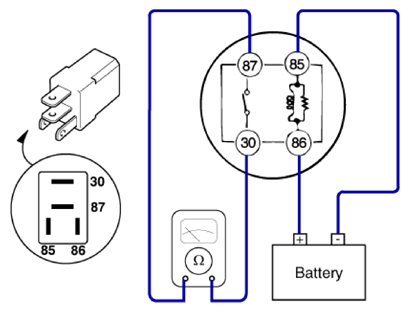

Apply 12V to terminal 85 and ground to terminal 86.
Check for continuity between terminals 30 and 87.

Courtesy of KIA MOTORS AMERICA, INC.
If there is no continuity, replace the starter relay.
Install the starter relay.
Install the fuse box cover.
