Removal And Installation
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

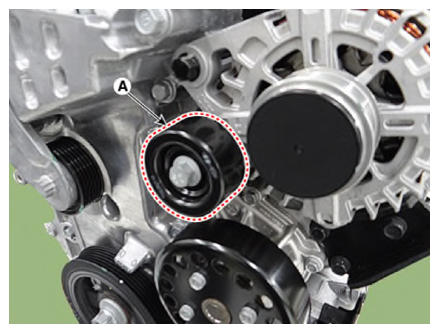

- Remove the idler (A).
Tightening torque
39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 23.9 - 36.2 lb.ft)
- Install in the reverse order of removal.
