Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Drain the coolant.
(Refer to Cooling System - "COOLANT ")
Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

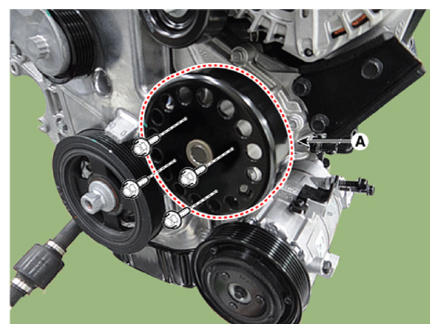

Remove the water pump pulley (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

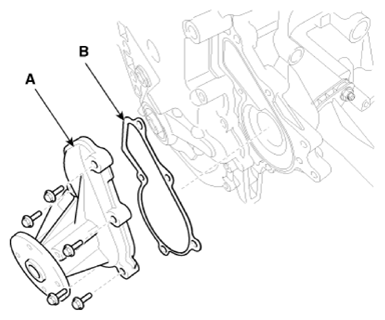

Remove the water pump assembly (A) with the gasket (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE: Always use a new water pump gasket.
Fill the engine coolant.
(Refer to Cooling System - "COOLANT ")
Start the engine and check for leaks.
Recheck the coolant level.
