Removal And Installation

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")
Remove the cooling fan assembly.
(Refer to Cooling System - "COOLING FAN ")

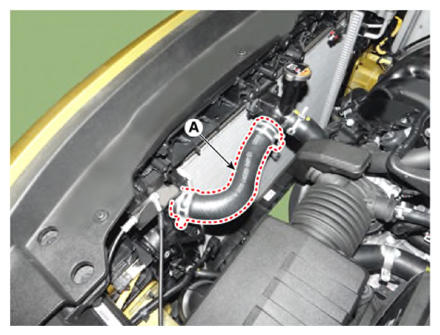

Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

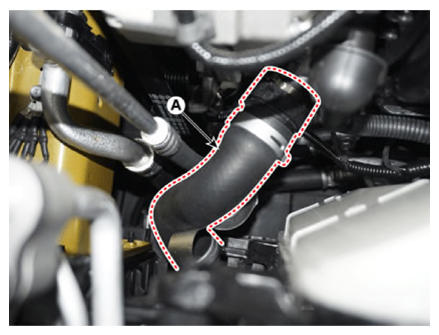

Disconnect the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

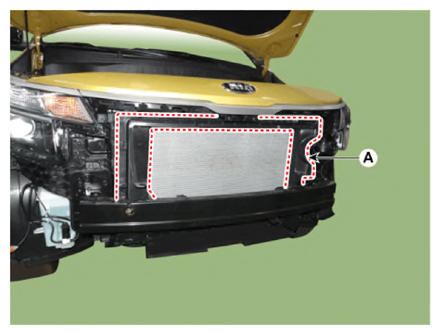

Remove the air guard (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

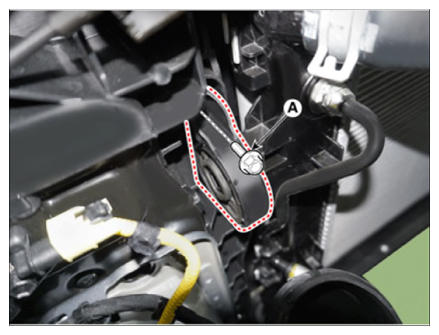

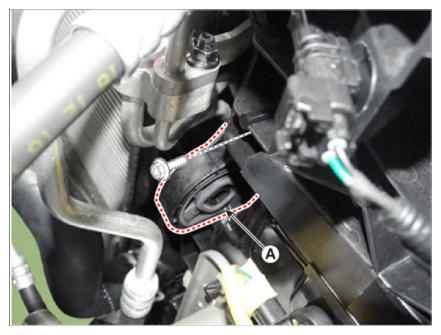

Remove the radiator upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

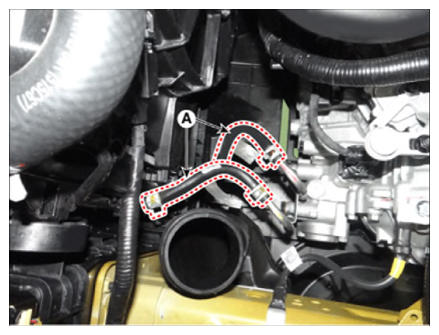

Disconnect the ATF cooler hoses (A).

Courtesy of KIA MOTORS AMERICA, INC.
Separate the condenser from the radiator.

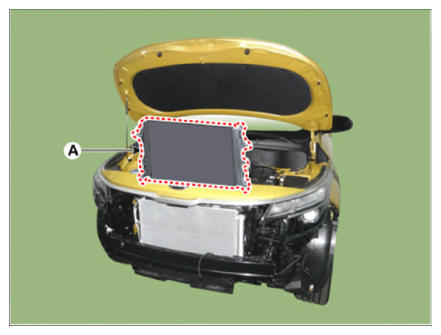

Pull the radiator (A) upward and remove it from engine room.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
Recheck engine coolant level.
