Removal And Installation: Resistor
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal.
- Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

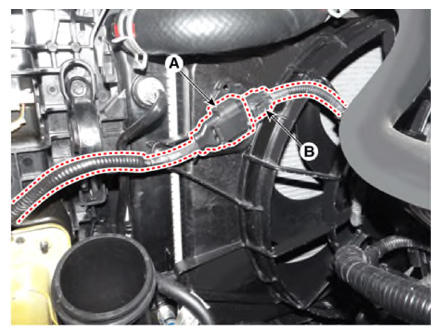

- Disconnect the wiring harness connector (A) and cooling fan motor connector (B).

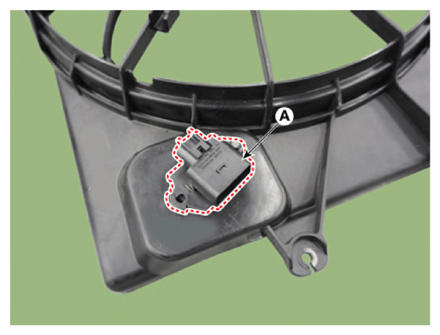

- Remove the resistor (A).
Tightening torque:
1.8 - 2.5 N.m (0.18 - 0.25 kgf.m, 1.3 - 1.8 lb.ft, 15.6 - 21.7 lb.in)
- Install in the reverse order of removal.
