Cooling Fan Assembly

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

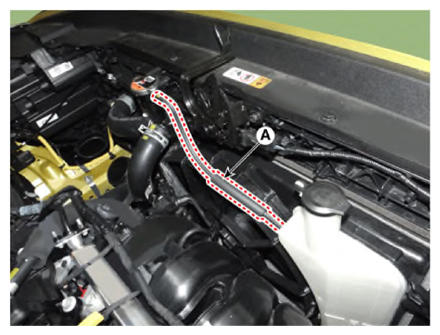

Disconnect the over flow hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

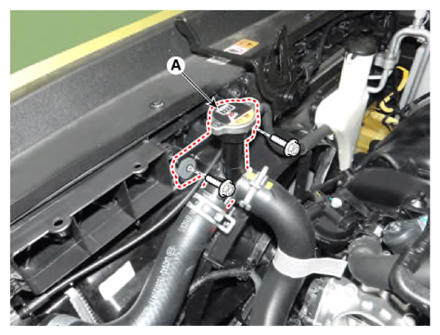

Separate the filler neck assembly (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 35.4 - 53.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the hood latch.
(Refer to Body (Interior and Exterior) - "HOOD LATCH ")

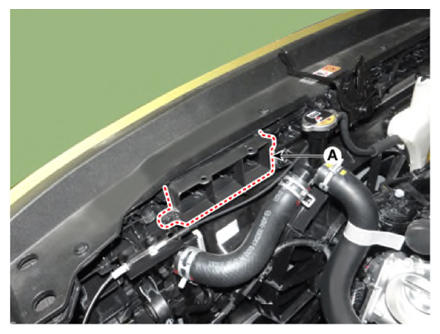

Remove the air intake shield (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 35.4 - 53.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

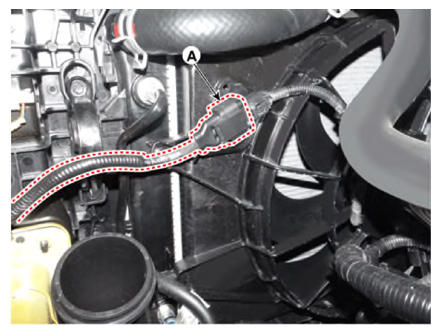

Disconnect the wiring harness connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

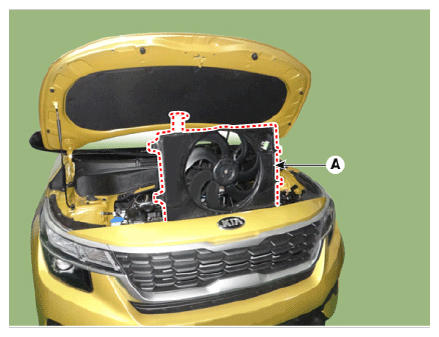

Remove the cooling fan assembly (A).
Tightening torque:

4.9 - 7.9 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
