Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

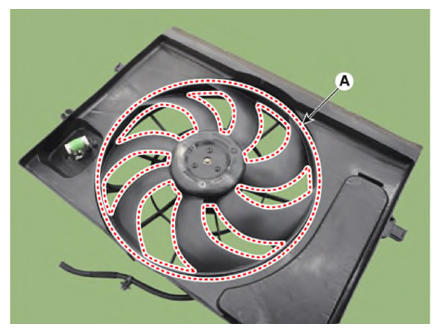

Remove the cooling fan (A) from the cooling fan shroud.
Tightening torque:

2.8 - 3.3 N.m (0.28 - 0.33 kgf.m, 2.06 - 2.43 lb.ft, 24.3 - 28.6 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fan motor connector from the resistor.

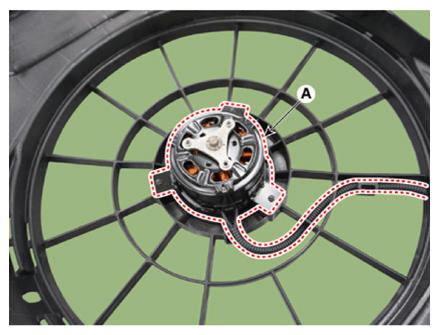

Remove the fan motor (A) from the cooling fan shroud.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 35.4 - 53.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
