Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

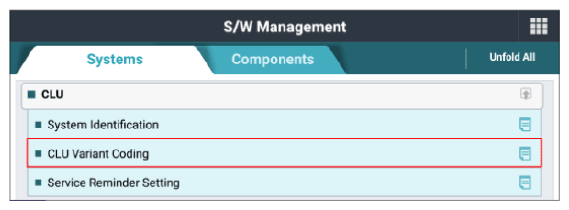

G13485115Courtesy of KIA MOTORS AMERICA, INC.

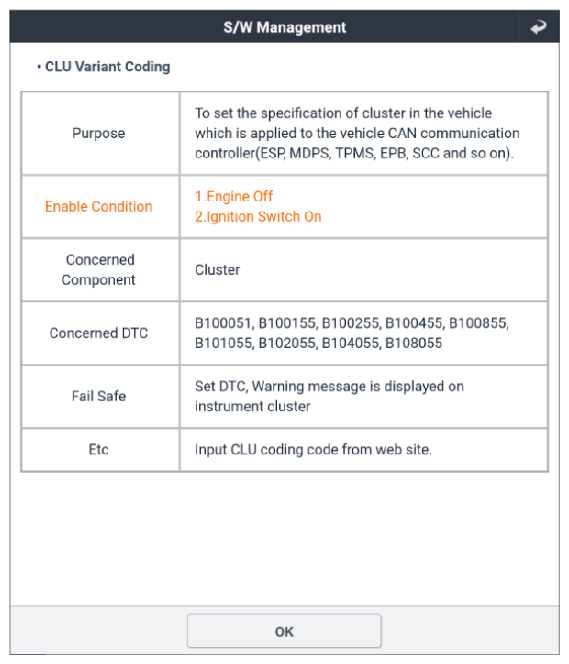

G13485116Courtesy of KIA MOTORS AMERICA, INC.

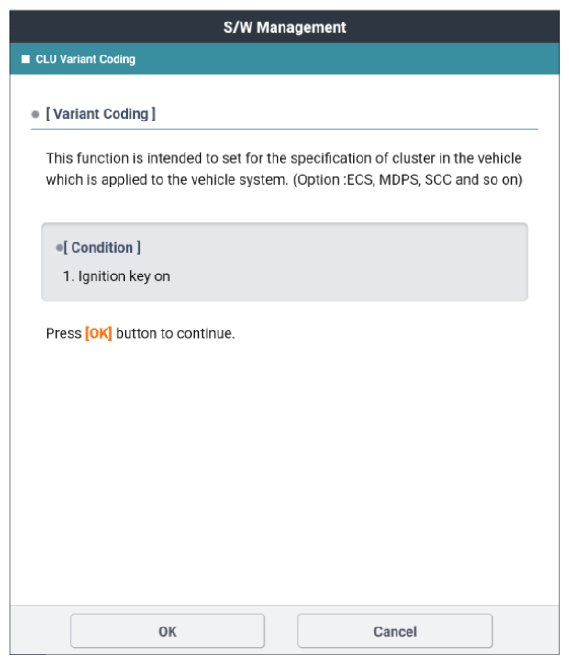

G13485117Courtesy of KIA MOTORS AMERICA, INC.

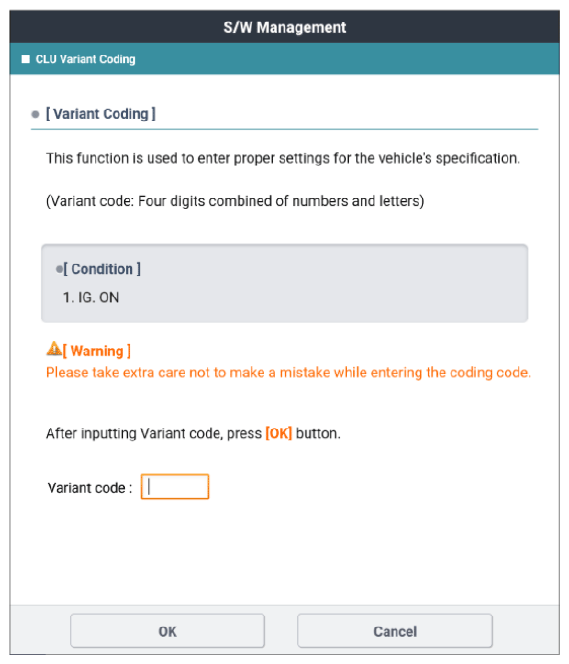

G13485118Courtesy of KIA MOTORS AMERICA, INC.

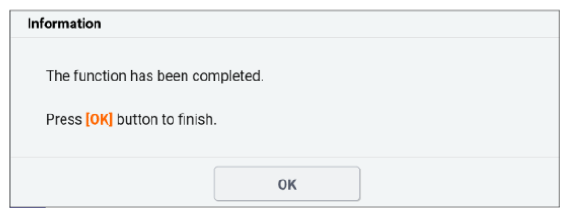

G13485119Courtesy of KIA MOTORS AMERICA, INC.
