Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

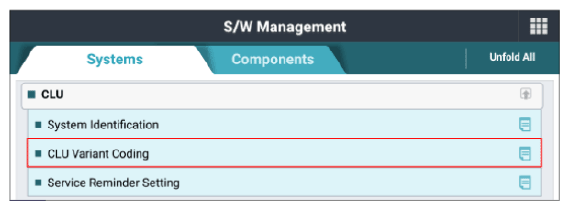

G13485102Courtesy of KIA MOTORS AMERICA, INC.

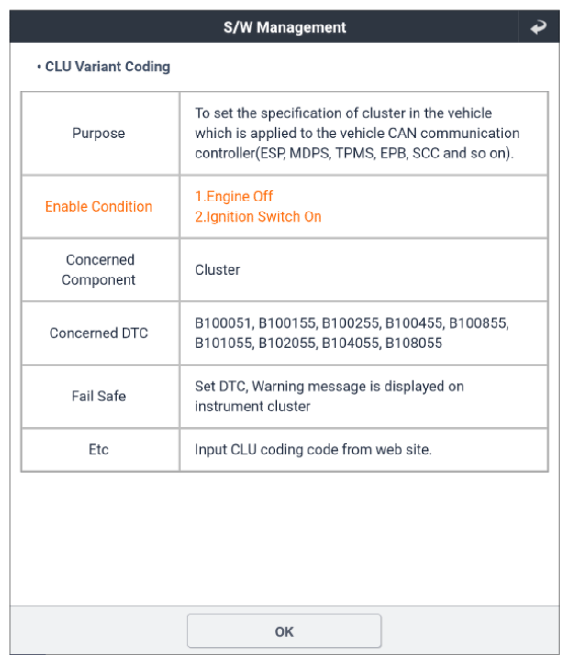

G13485103Courtesy of KIA MOTORS AMERICA, INC.

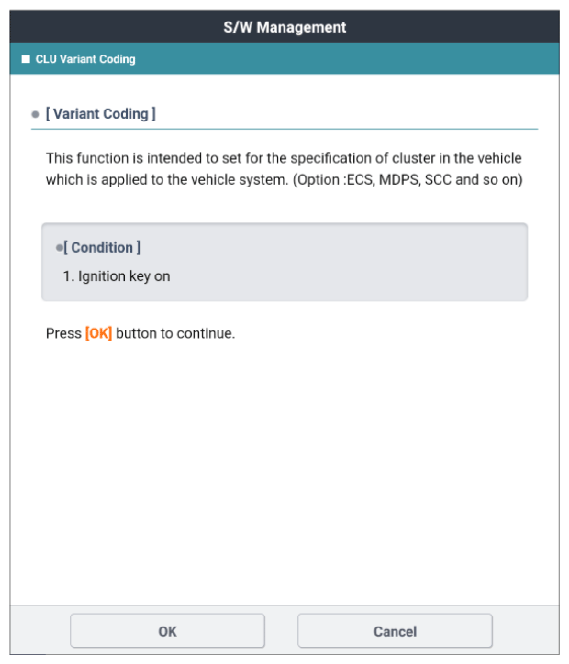

G13485104Courtesy of KIA MOTORS AMERICA, INC.

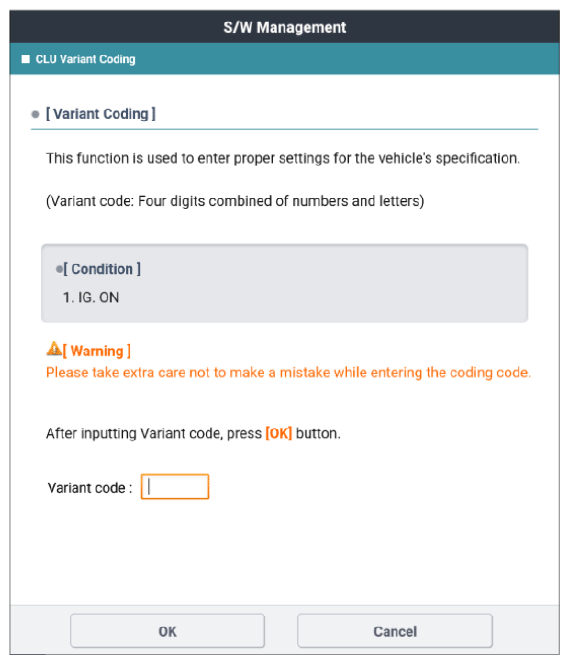

G13485105Courtesy of KIA MOTORS AMERICA, INC.

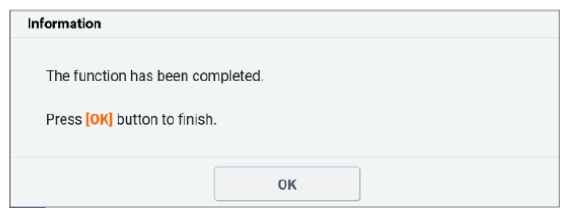

G13485106Courtesy of KIA MOTORS AMERICA, INC.
