Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 to 5

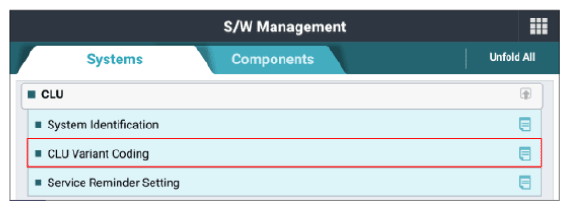

G13485089Courtesy of KIA MOTORS AMERICA, INC.

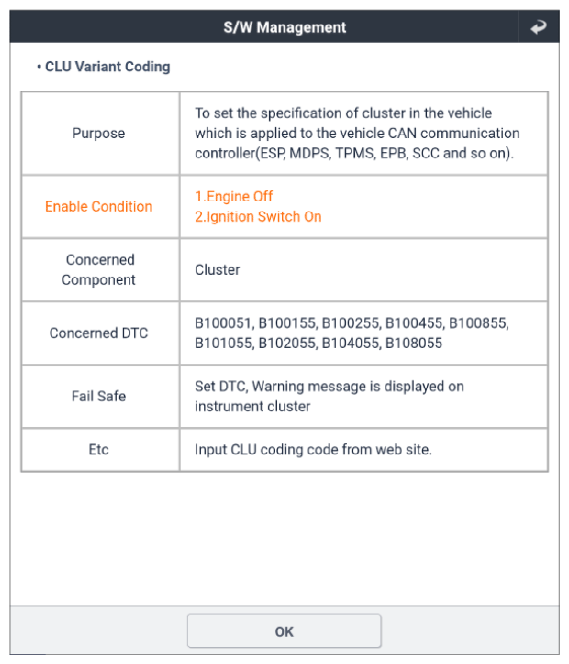

G13485090Courtesy of KIA MOTORS AMERICA, INC.

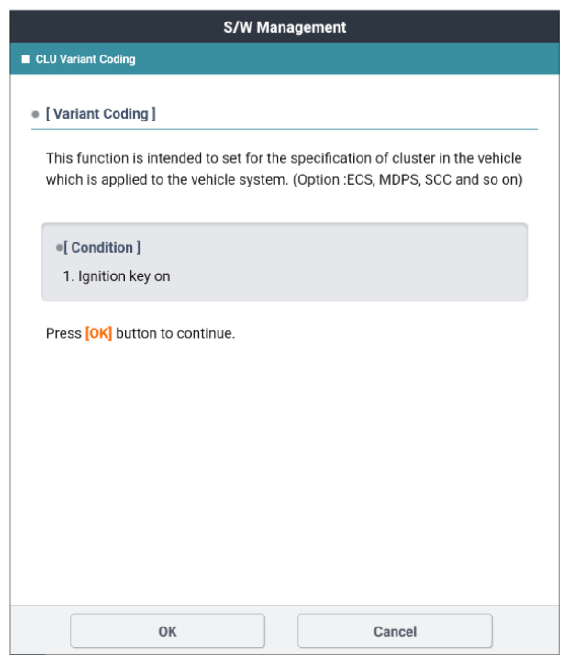

G13485091Courtesy of KIA MOTORS AMERICA, INC.

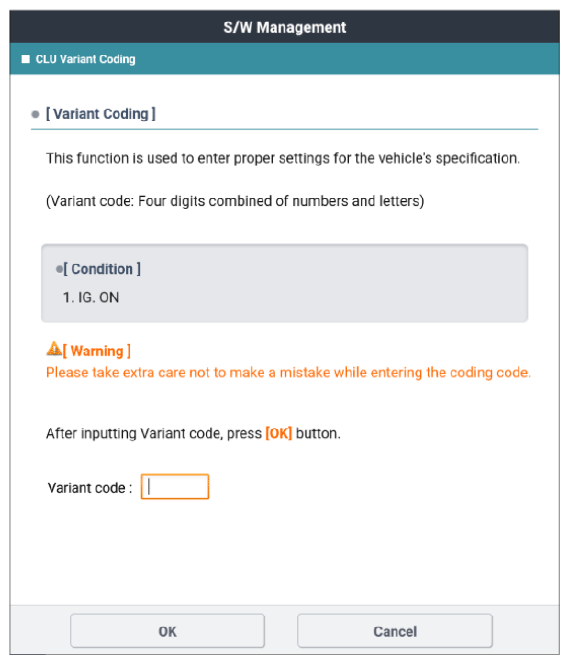

G13485092Courtesy of KIA MOTORS AMERICA, INC.

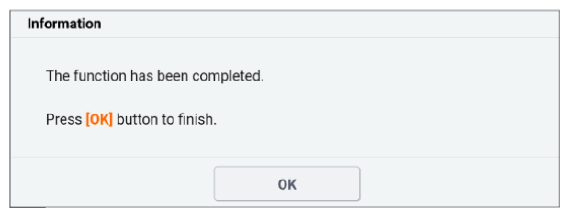

G13485093Courtesy of KIA MOTORS AMERICA, INC.
