Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

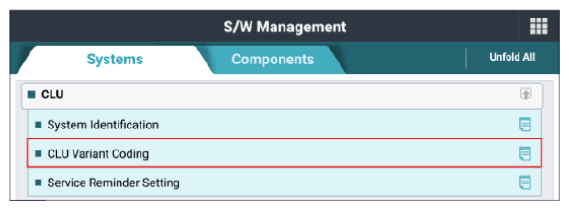

G13485076Courtesy of KIA MOTORS AMERICA, INC.

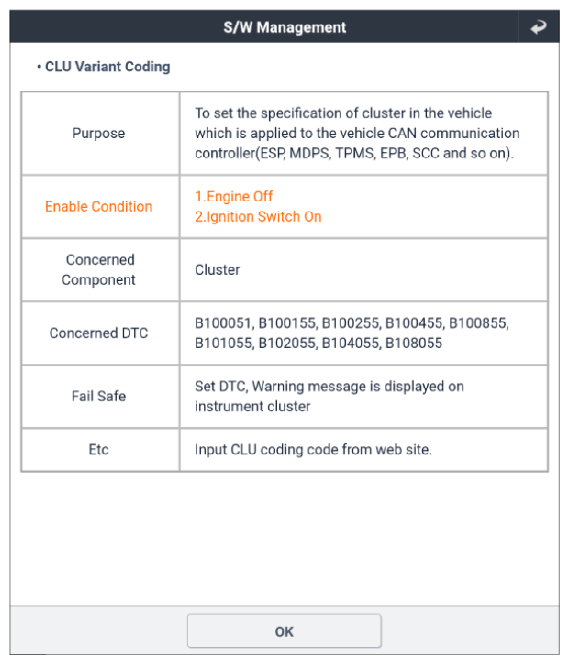

G13485077Courtesy of KIA MOTORS AMERICA, INC.

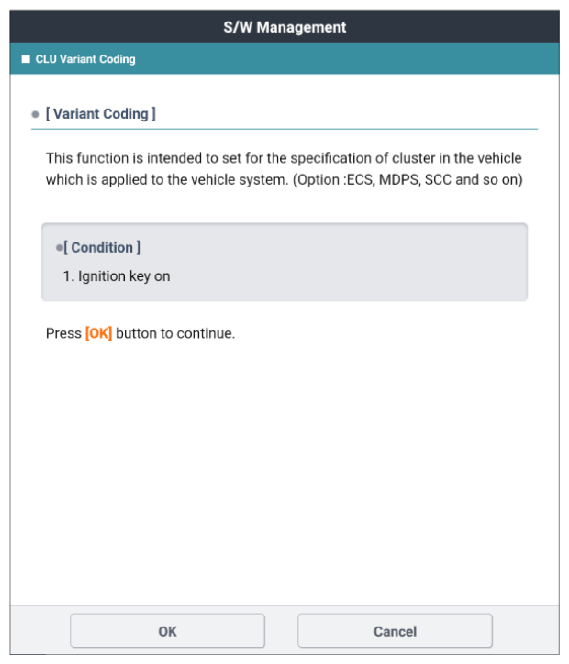

G13485078Courtesy of KIA MOTORS AMERICA, INC.

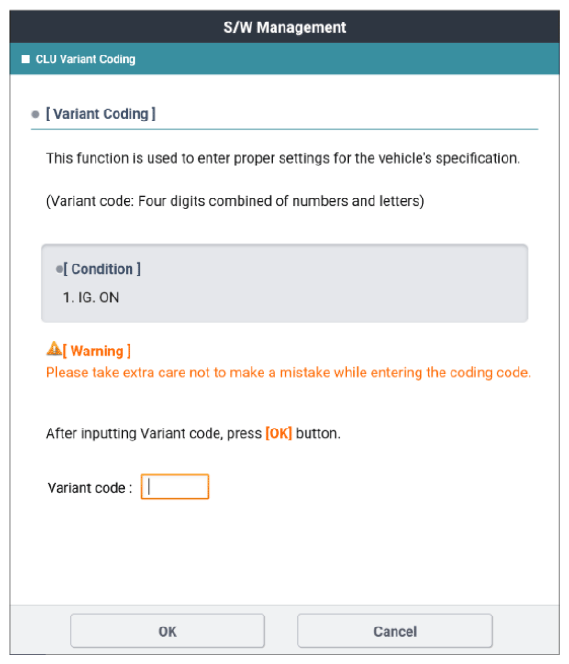

G13485079Courtesy of KIA MOTORS AMERICA, INC.

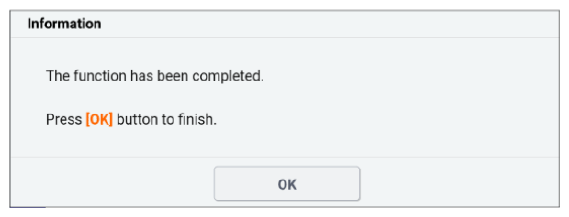

G13485080Courtesy of KIA MOTORS AMERICA, INC.
