Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

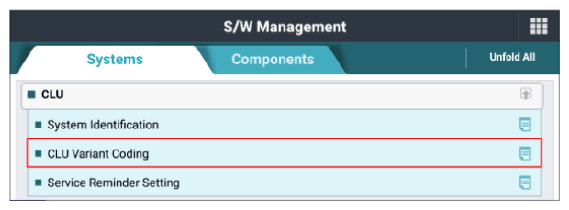

G13485053Courtesy of KIA MOTORS AMERICA, INC.

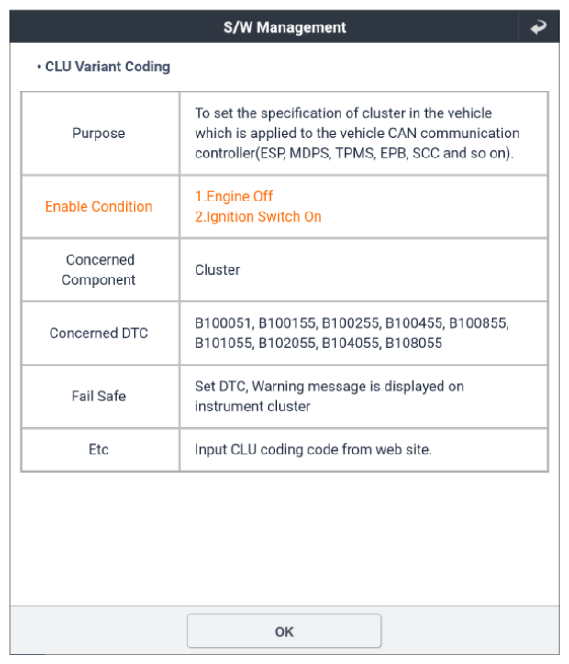

G13485054Courtesy of KIA MOTORS AMERICA, INC.

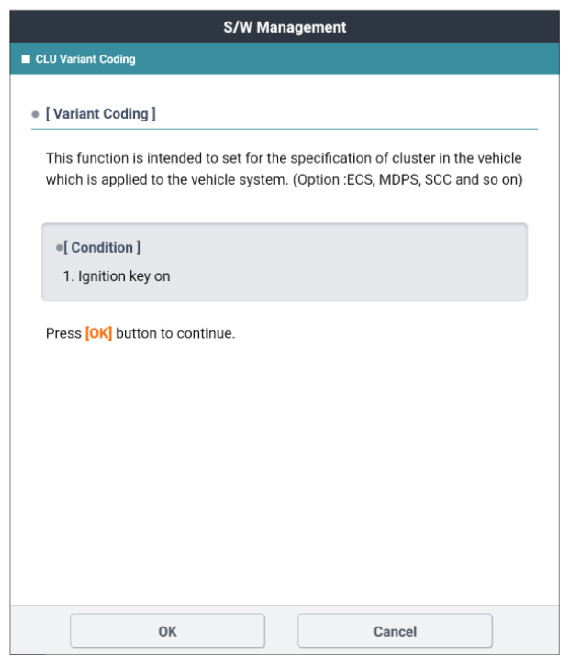

G13485055Courtesy of KIA MOTORS AMERICA, INC.

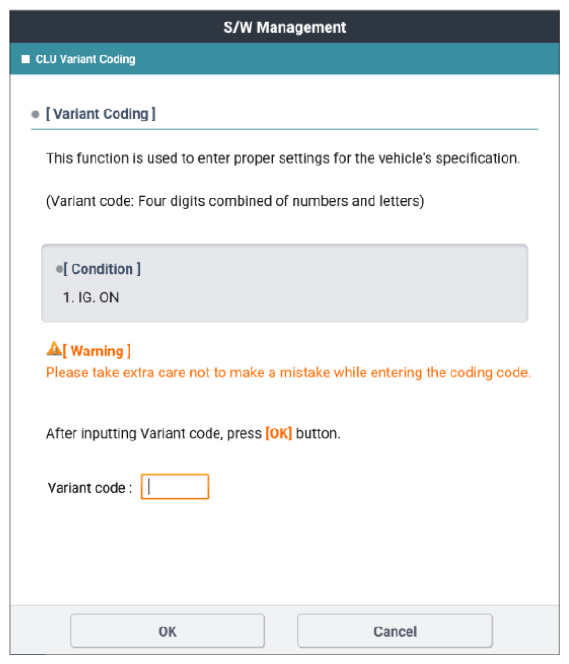

G13485056Courtesy of KIA MOTORS AMERICA, INC.

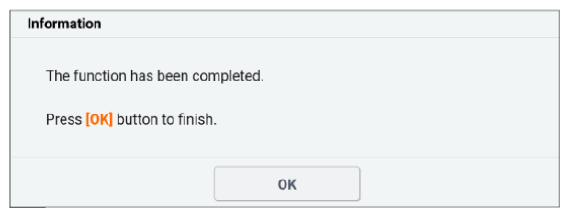

G13485057Courtesy of KIA MOTORS AMERICA, INC.
