Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

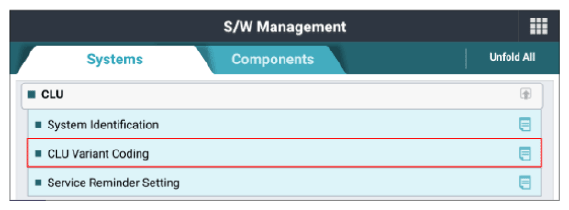

G13485030Courtesy of KIA MOTORS AMERICA, INC.

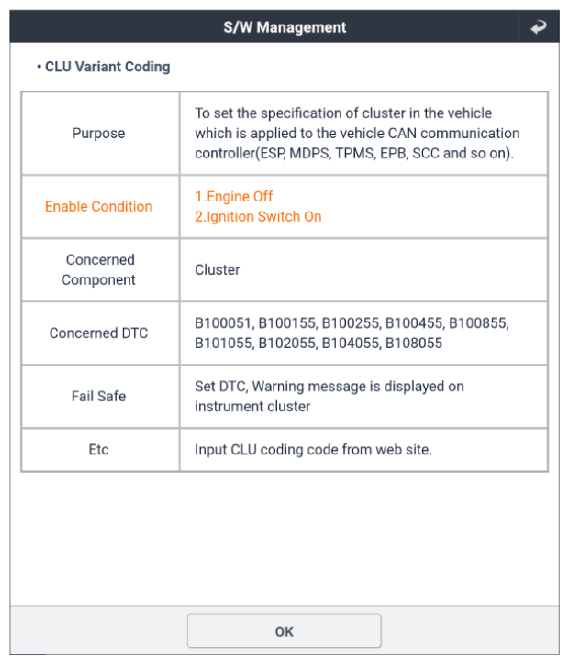

G13485031Courtesy of KIA MOTORS AMERICA, INC.

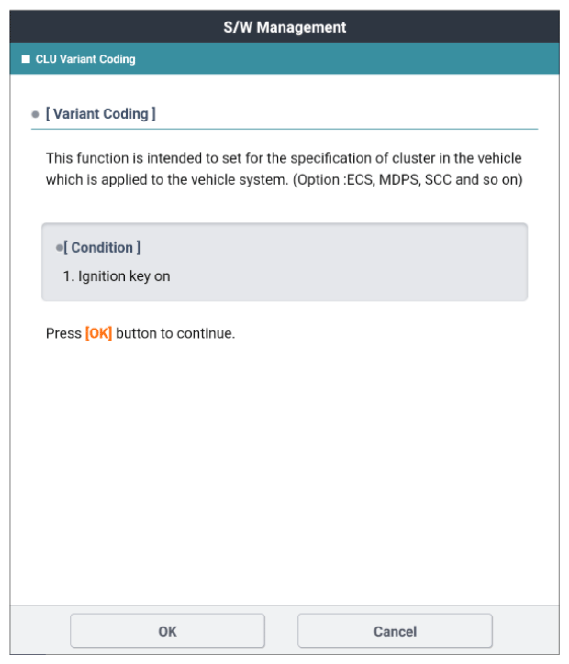

G13485032Courtesy of KIA MOTORS AMERICA, INC.

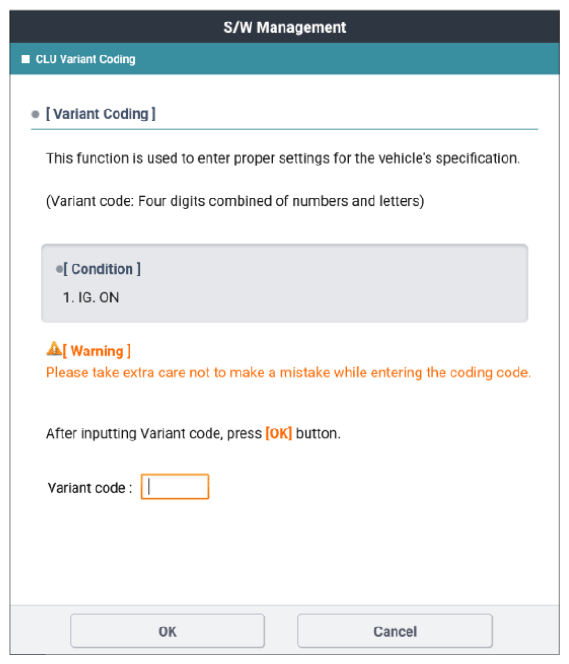

G13485033Courtesy of KIA MOTORS AMERICA, INC.

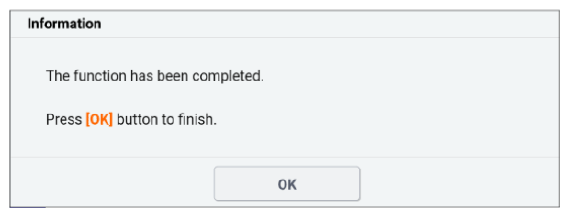

G13485034Courtesy of KIA MOTORS AMERICA, INC.
