Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

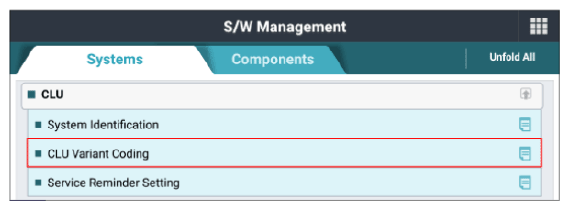

G13485007Courtesy of KIA MOTORS AMERICA, INC.

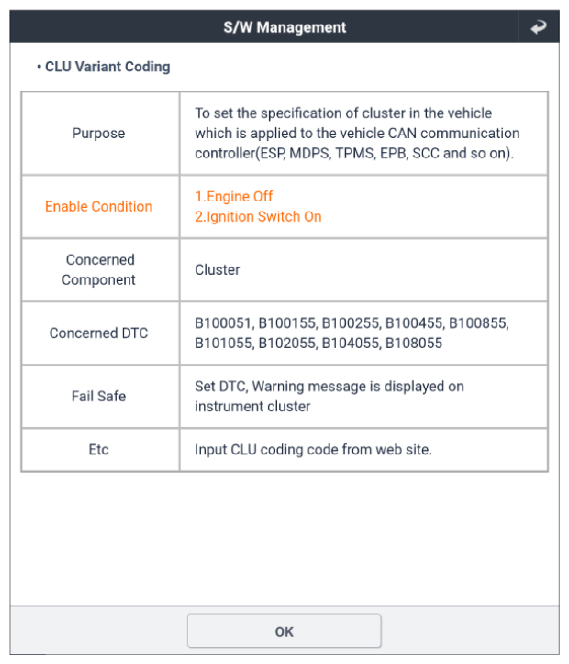

G13485008Courtesy of KIA MOTORS AMERICA, INC.

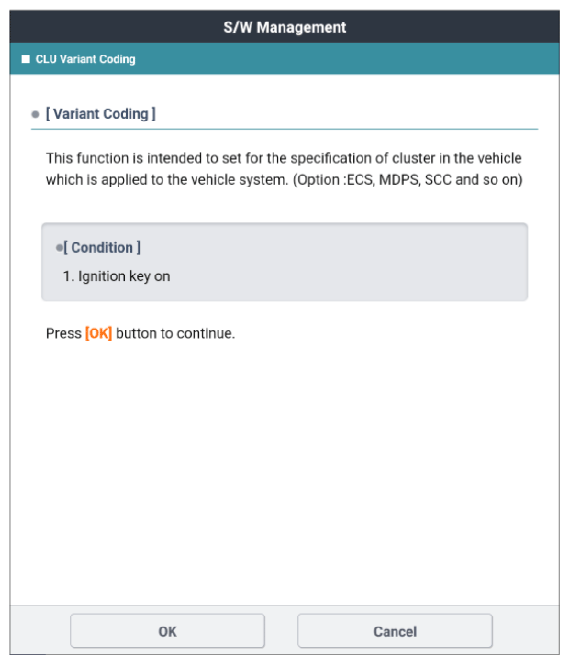

G13485009Courtesy of KIA MOTORS AMERICA, INC.

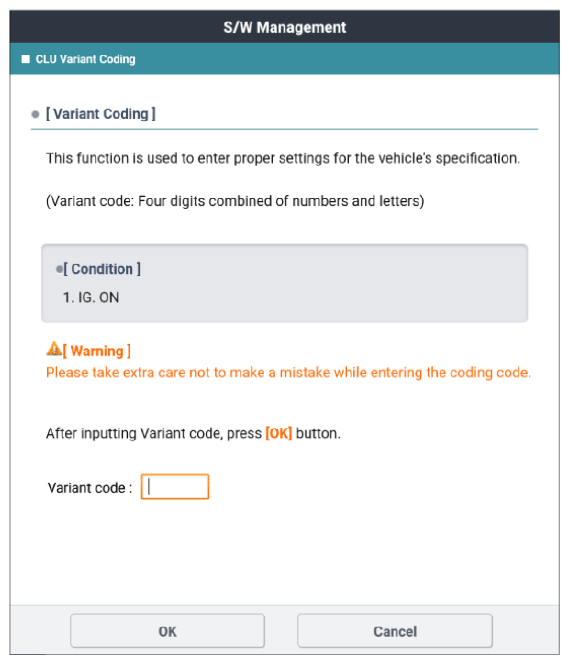

G13485010Courtesy of KIA MOTORS AMERICA, INC.

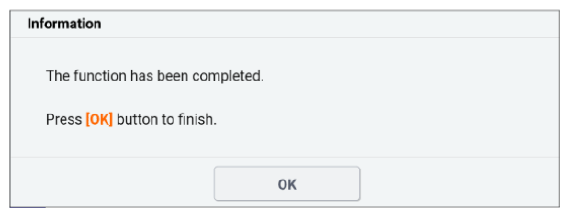

G13485011Courtesy of KIA MOTORS AMERICA, INC.
