Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

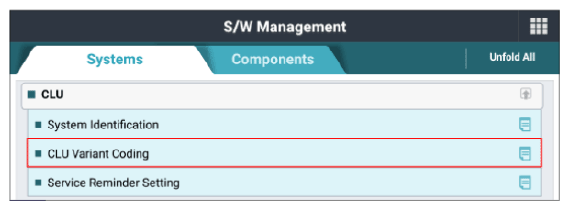

G13484984Courtesy of KIA MOTORS AMERICA, INC.

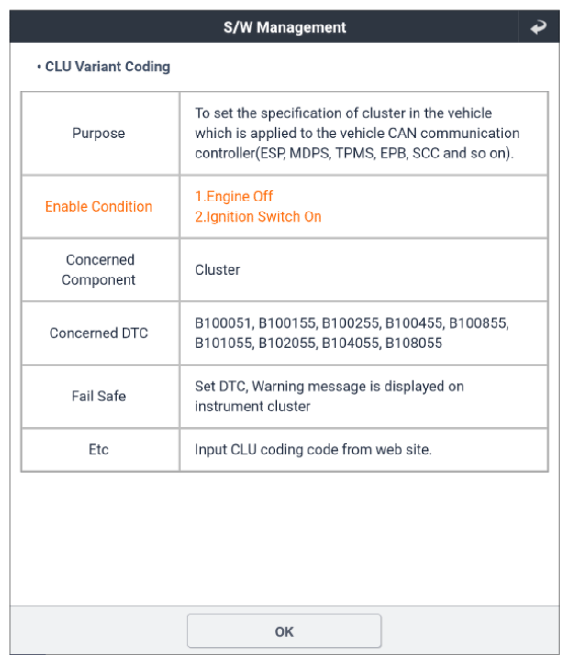

G13484985Courtesy of KIA MOTORS AMERICA, INC.

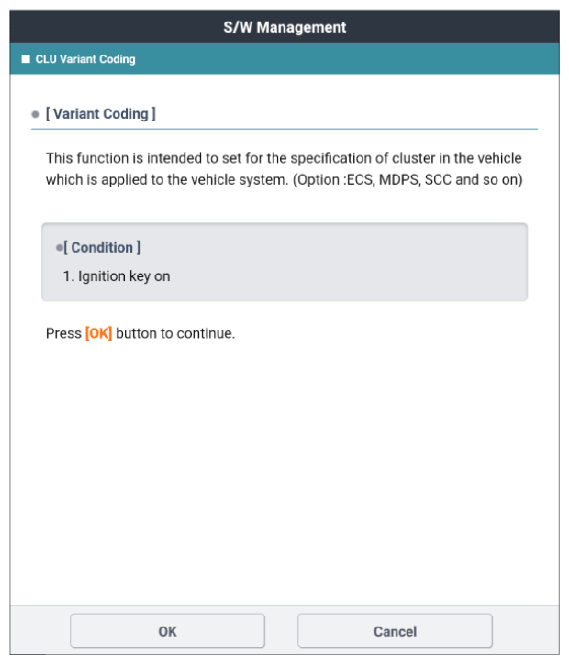

G13484986Courtesy of KIA MOTORS AMERICA, INC.

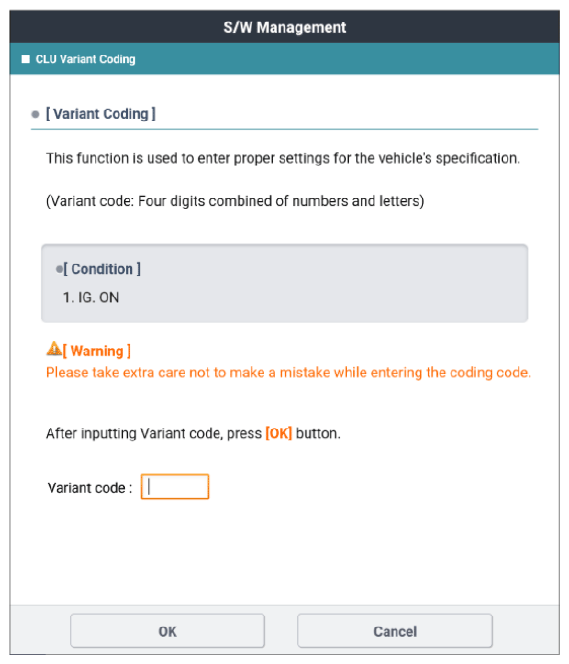

G13484987Courtesy of KIA MOTORS AMERICA, INC.

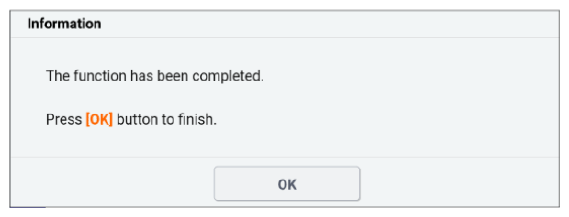

G13484988Courtesy of KIA MOTORS AMERICA, INC.
