Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

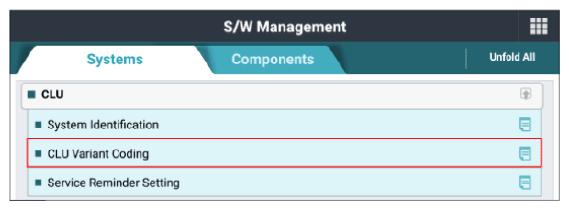

G13484941Courtesy of KIA MOTORS AMERICA, INC.

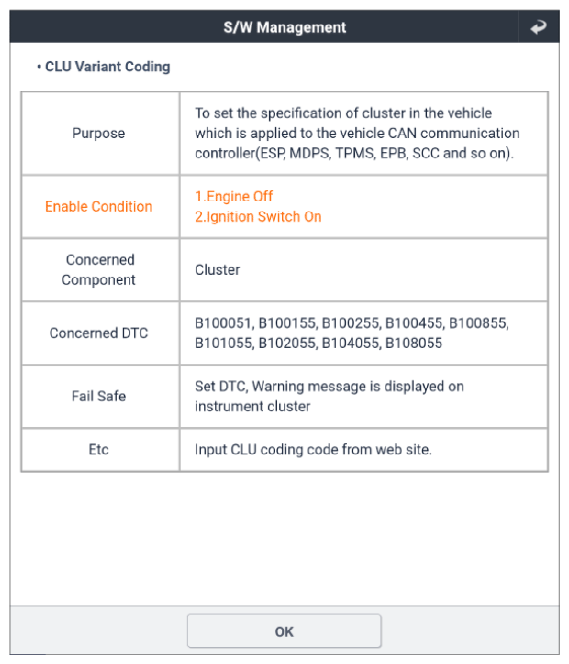

G13484942Courtesy of KIA MOTORS AMERICA, INC.

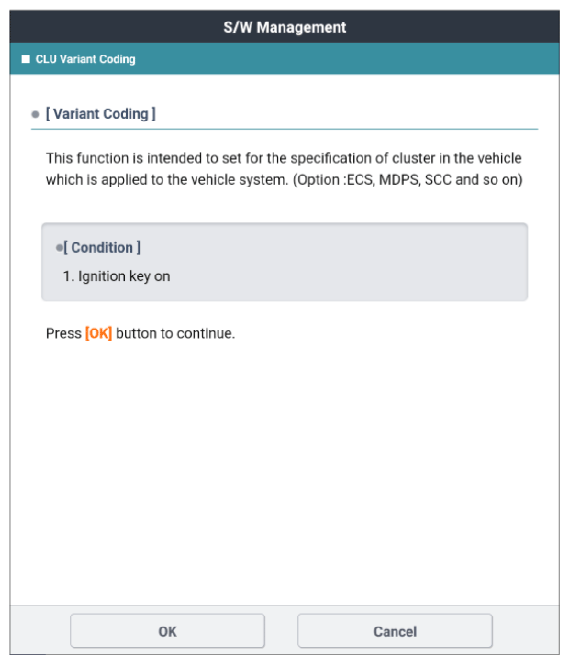

G13484943Courtesy of KIA MOTORS AMERICA, INC.

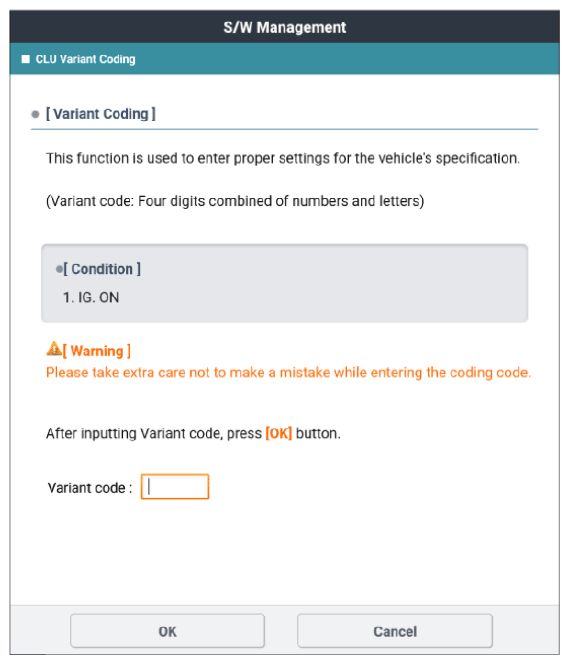

G13484944Courtesy of KIA MOTORS AMERICA, INC.

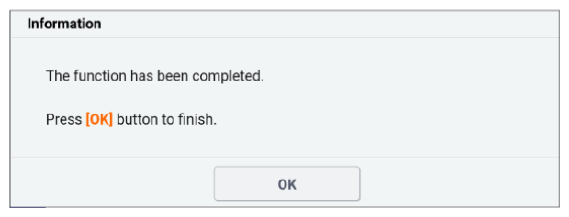

G13484945Courtesy of KIA MOTORS AMERICA, INC.
