Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

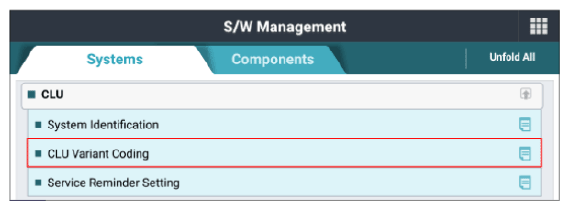

G13484921Courtesy of KIA MOTORS AMERICA, INC.

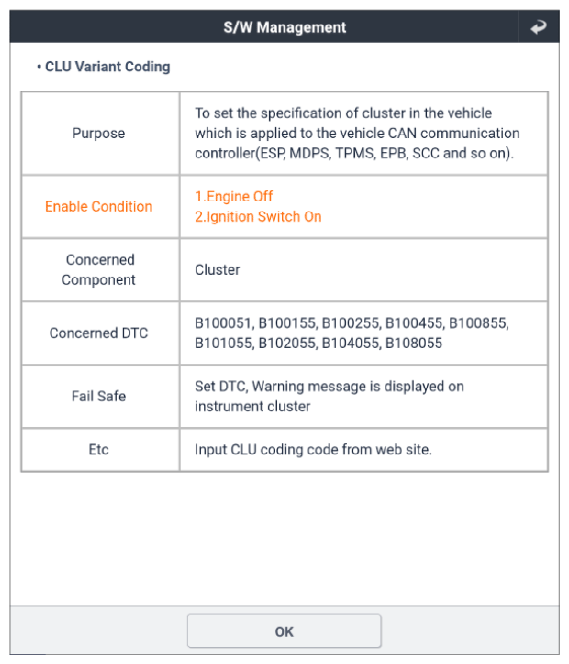

G13484922Courtesy of KIA MOTORS AMERICA, INC.

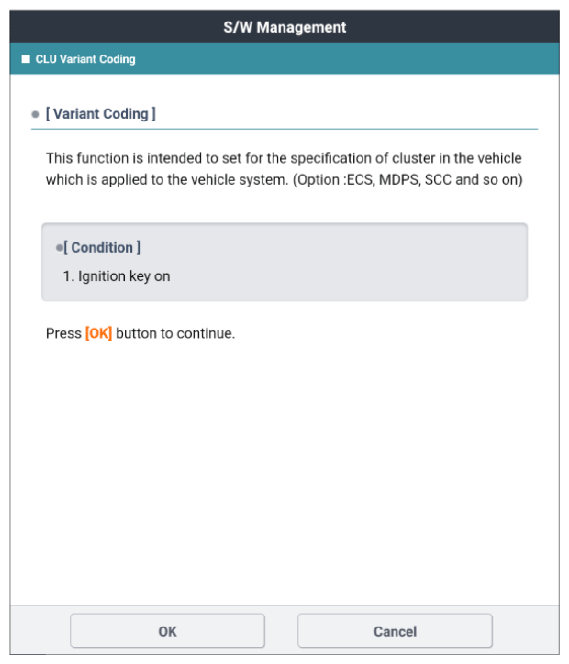

G13484923Courtesy of KIA MOTORS AMERICA, INC.

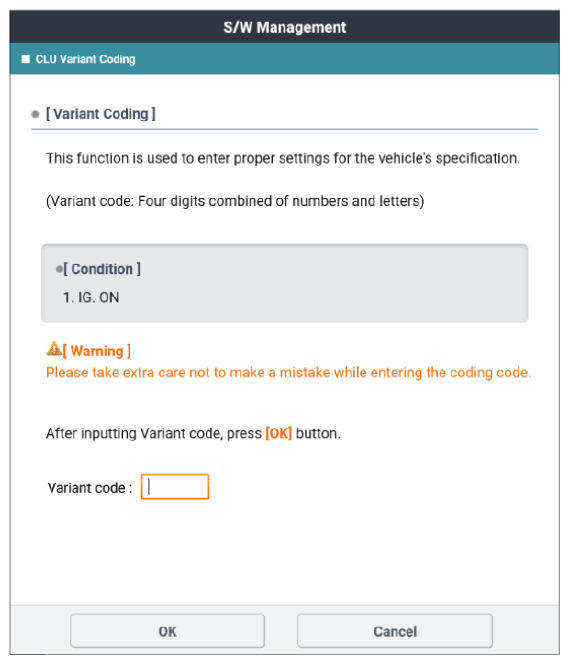

G13484924Courtesy of KIA MOTORS AMERICA, INC.

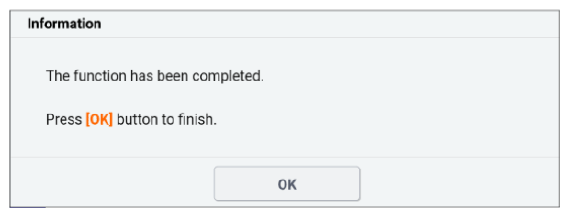

G13484925Courtesy of KIA MOTORS AMERICA, INC.
