Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

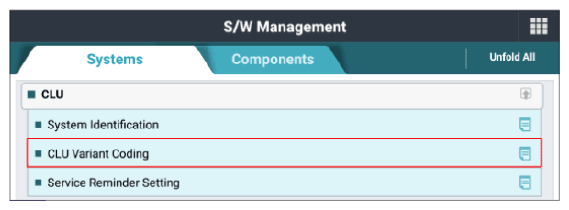

G13484901Courtesy of KIA MOTORS AMERICA, INC.

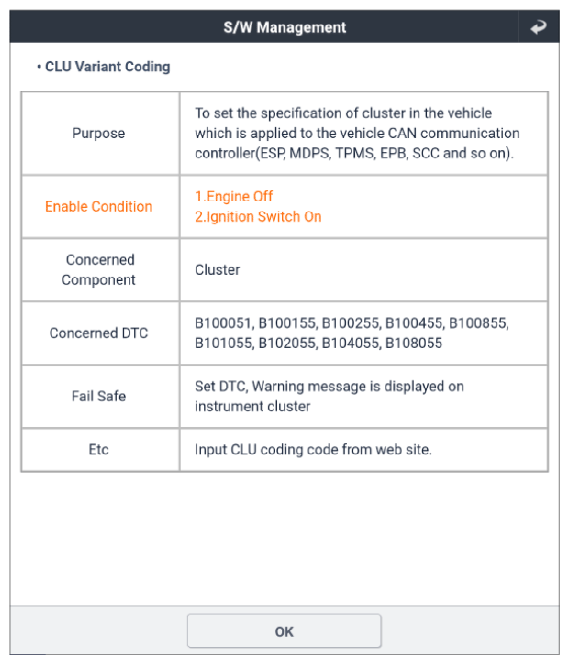

G13484902Courtesy of KIA MOTORS AMERICA, INC.

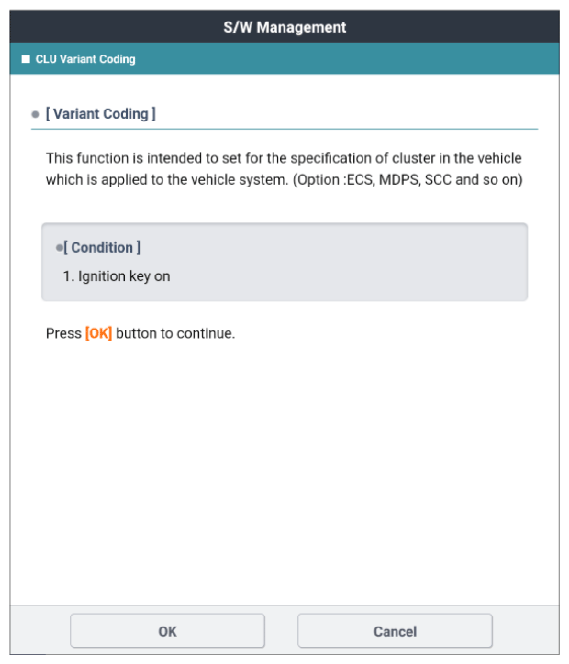

G13484903Courtesy of KIA MOTORS AMERICA, INC.

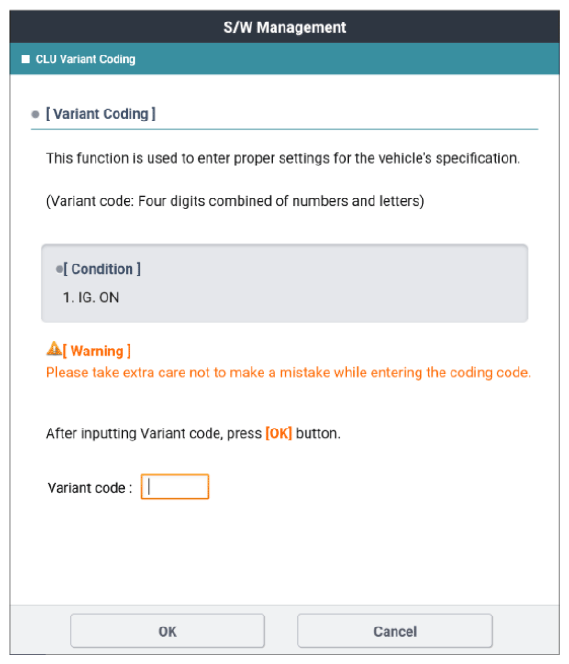

G13484904Courtesy of KIA MOTORS AMERICA, INC.

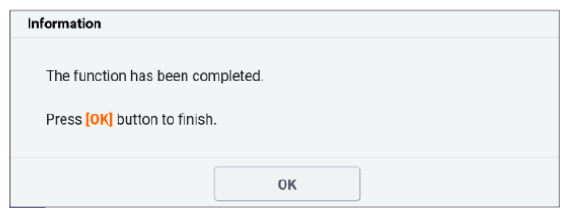

G13484905Courtesy of KIA MOTORS AMERICA, INC.
