Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

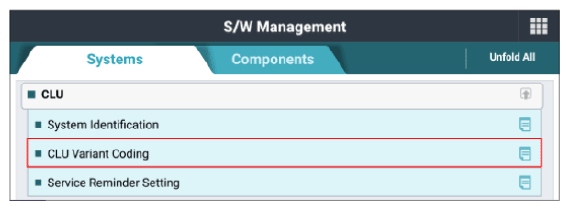

G13484881Courtesy of KIA MOTORS AMERICA, INC.

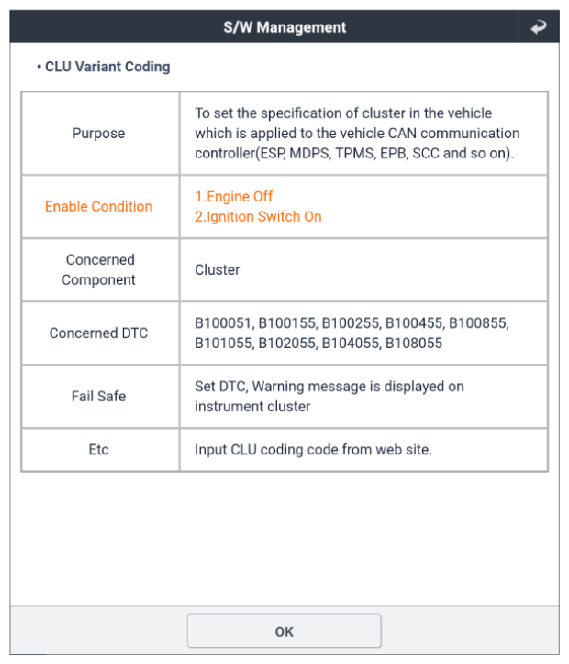

G13484882Courtesy of KIA MOTORS AMERICA, INC.

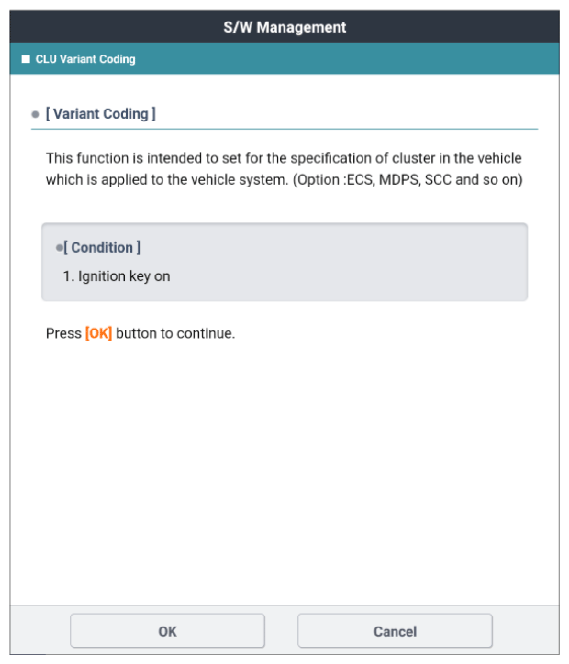

G13484883Courtesy of KIA MOTORS AMERICA, INC.

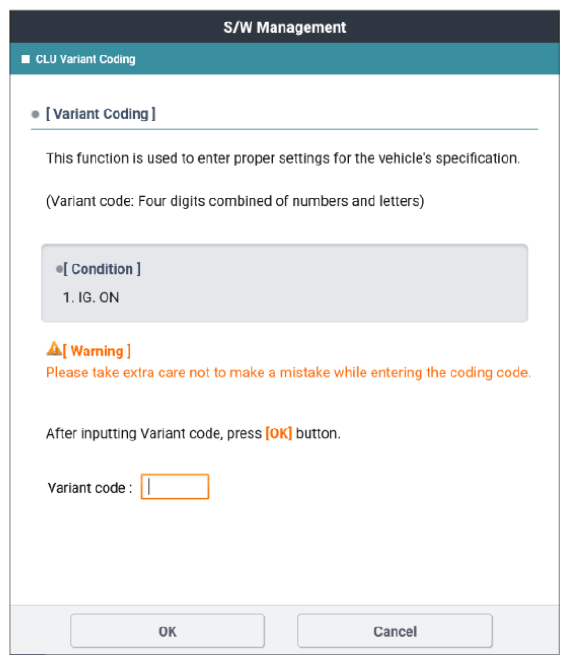

G13484884Courtesy of KIA MOTORS AMERICA, INC.

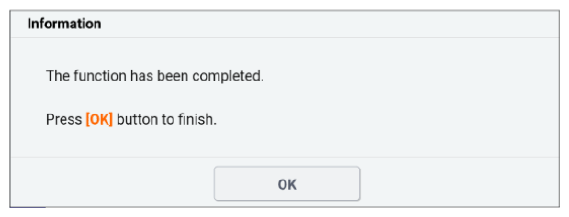

G13484885Courtesy of KIA MOTORS AMERICA, INC.
