Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

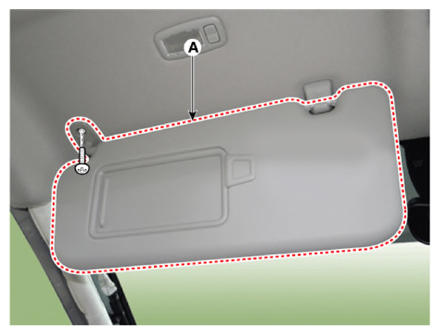

Loosen the mounting screw and separate the sunvisor (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf-m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

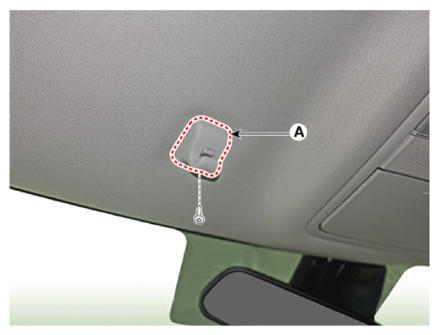

Loosen the mounting screw and remove the retainer (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf-m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
