Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

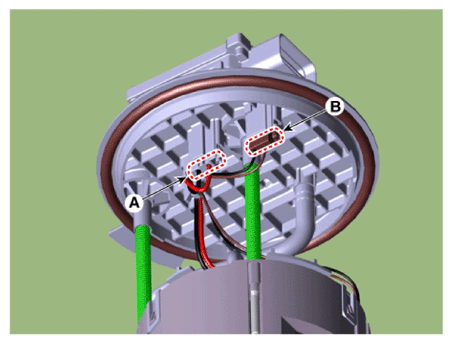

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

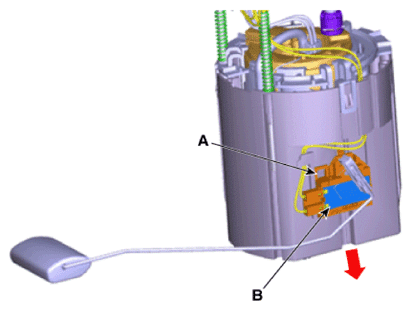

Remove the fuel sender (B) in the direction of arrow after releasing the fixing hook (A).

Courtesy of KIA MOTORS AMERICA, INC.

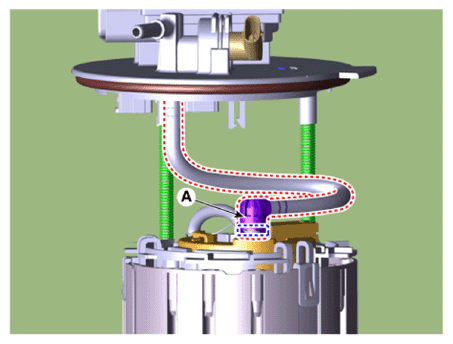

Disconnect the fuel feed tube (A) after removing the fixing clip.

Courtesy of KIA MOTORS AMERICA, INC.

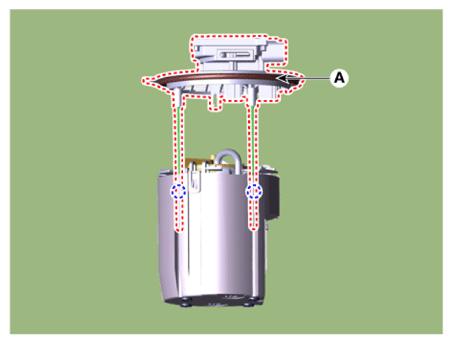

Remove the head assembly (A) after releasing the fixing hook.

Courtesy of KIA MOTORS AMERICA, INC.

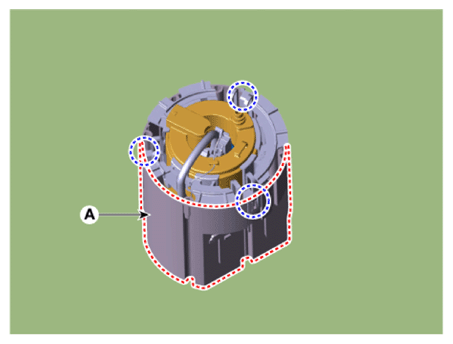

Remove the reservoir-cup (A) after releasing the fixing hooks.

Courtesy of KIA MOTORS AMERICA, INC.

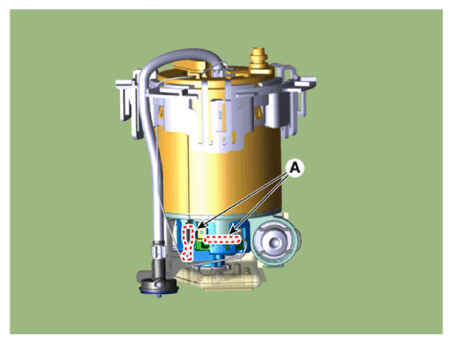

Disconnect the ground wire (A).

Courtesy of KIA MOTORS AMERICA, INC.

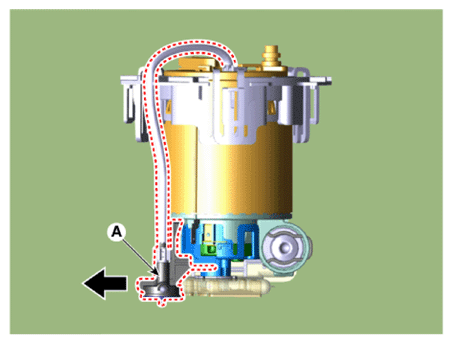

Disconnect the assist pump (A) in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

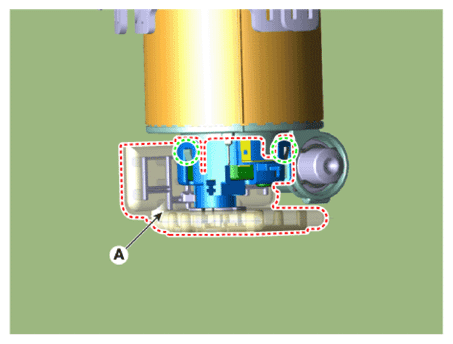

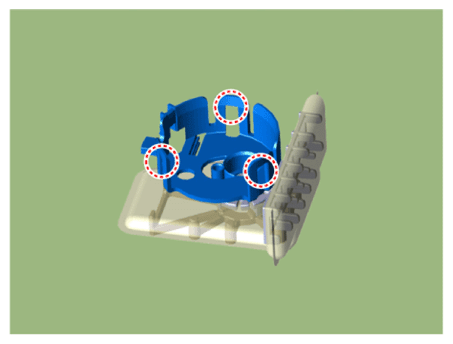

Remove the pre-filter (A) after releasing the fixing hooks.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

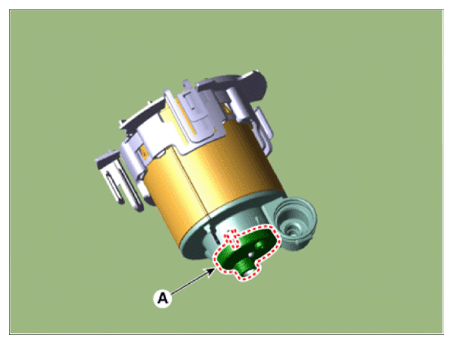

Remove the rubber cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

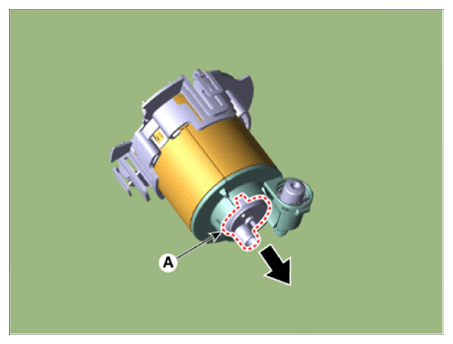

Remove the fuel pump motor (A) in the direction of arrow.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
