Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

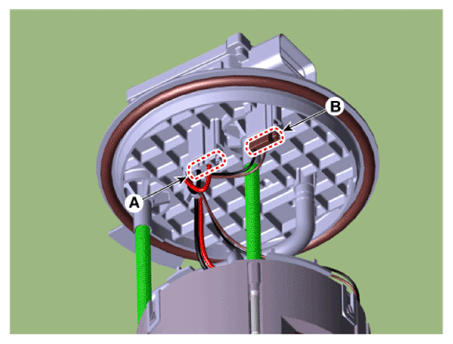

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G13483143Courtesy of KIA MOTORS AMERICA, INC.

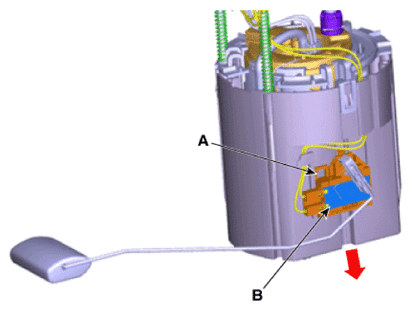

  3. Remove the fuel sender (B) in the direction of arrow after releasing the fixing hook (A).
    G13483144Courtesy of KIA MOTORS AMERICA, INC.

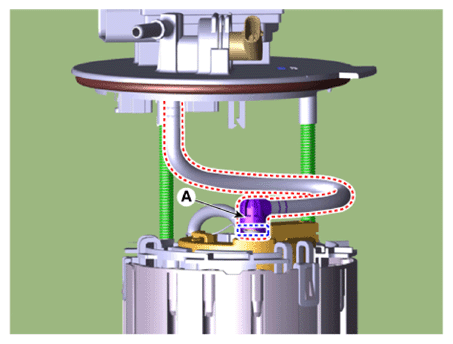

  4. Disconnect the fuel feed tube (A) after removing the fixing clip.
    G13483145Courtesy of KIA MOTORS AMERICA, INC.

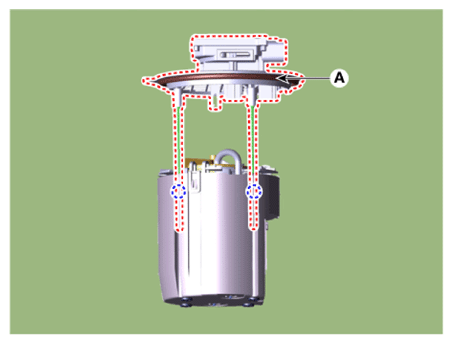

  5. Remove the head assembly (A) after releasing the fixing hook.
    G13483146Courtesy of KIA MOTORS AMERICA, INC.

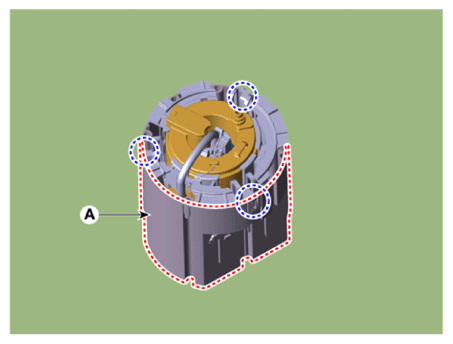

  6. Remove the reservoir-cup (A) after releasing the fixing hooks.
    G13483147Courtesy of KIA MOTORS AMERICA, INC.

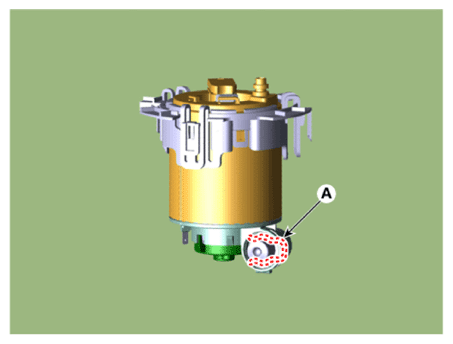

  7. Remove the regulator fixing pin (A).
    G13483148Courtesy of KIA MOTORS AMERICA, INC.

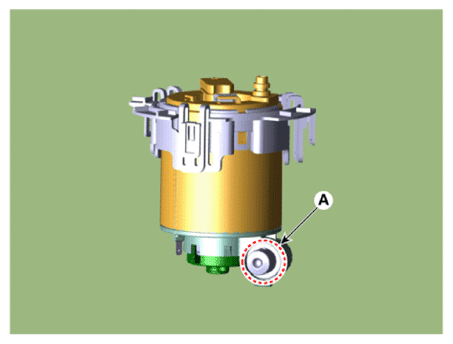

  8. Remove the regulator (A).
    G13483149Courtesy of KIA MOTORS AMERICA, INC.
    G13483150Courtesy of KIA MOTORS AMERICA, INC.
