Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ".)

    NOTE: When removing the fuel pump relay, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the KDS after completion of "Release Residual Pressure in Fuel Line" work.
  2. Disconnect the negative battery terminal.
  3. Disconnect the fuel feed tube quick-connector (A) and vapor hose (B).

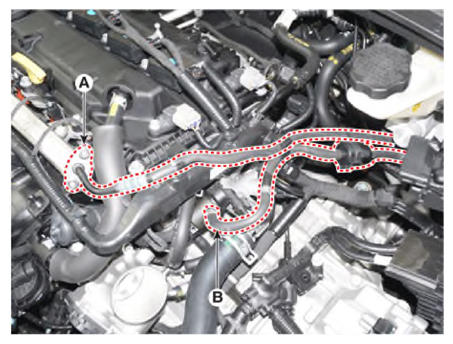

    G13483165Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

  5. Remove the fuel and brake line protector (A).

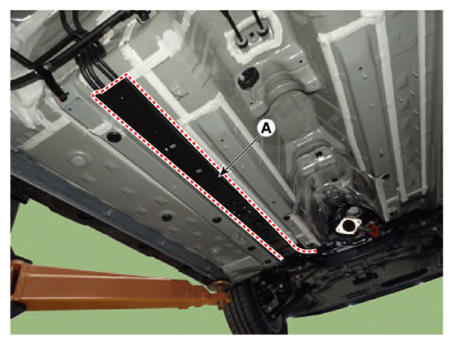

    G13483166Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the fuel feed line & vapor tube line fixing clips (A).

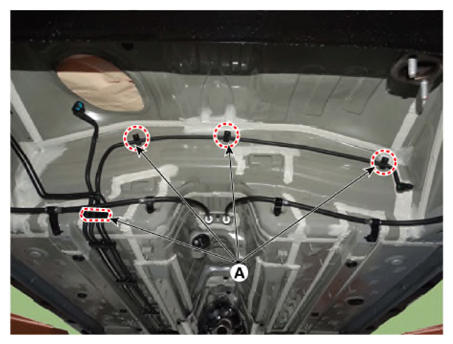

    G13483167Courtesy of KIA MOTORS AMERICA, INC.

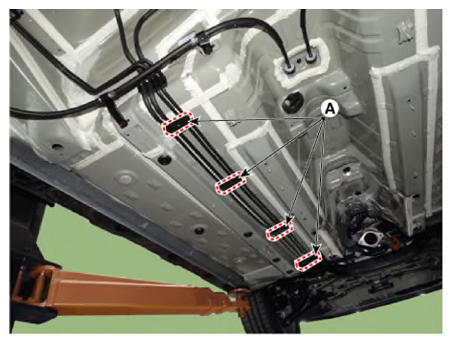

    G13483168Courtesy of KIA MOTORS AMERICA, INC.

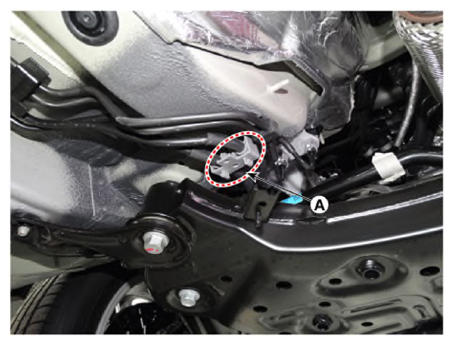

    G13483169Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the fuel line.

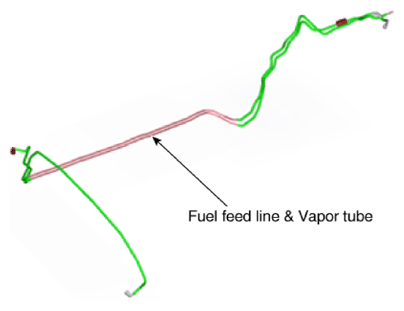

    G13483170Courtesy of KIA MOTORS AMERICA, INC.
