[EVAP. Leakage Test]

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

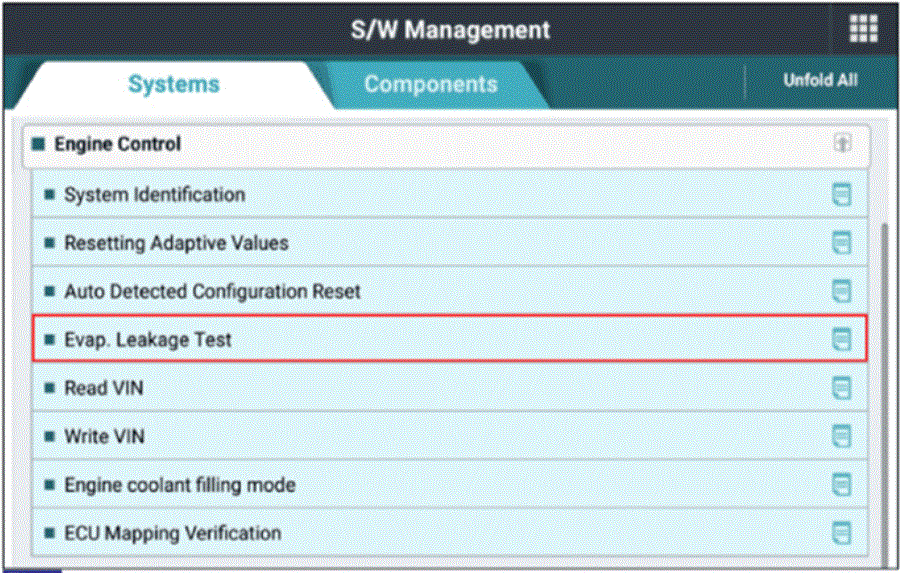

Select "Evap. Leakage Test".

Courtesy of KIA MOTORS AMERICA, INC.

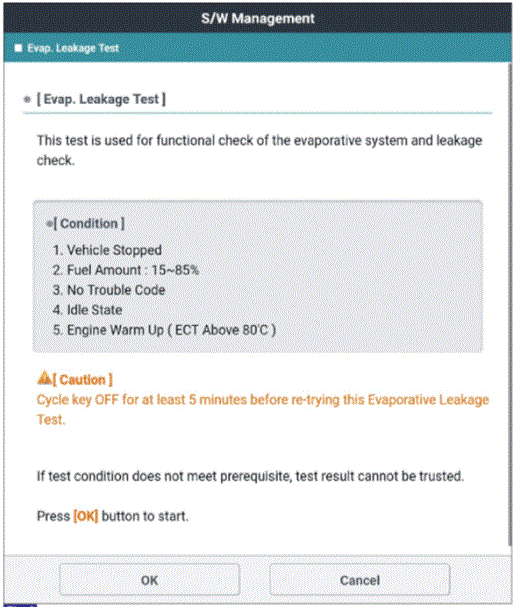

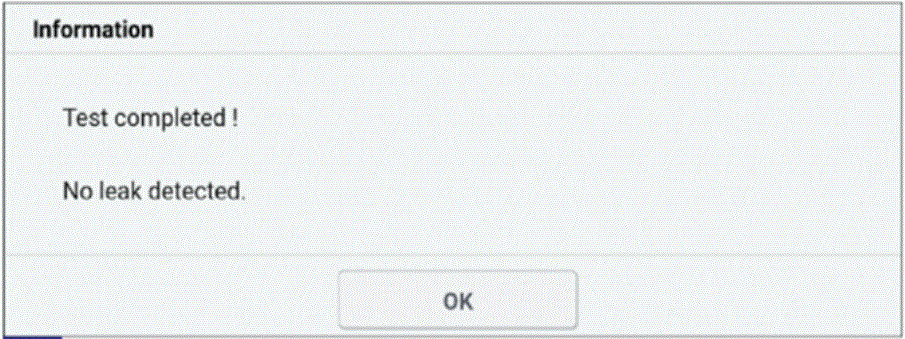

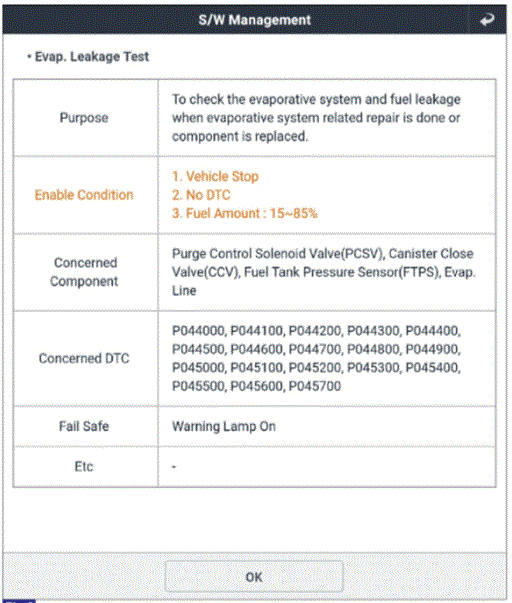

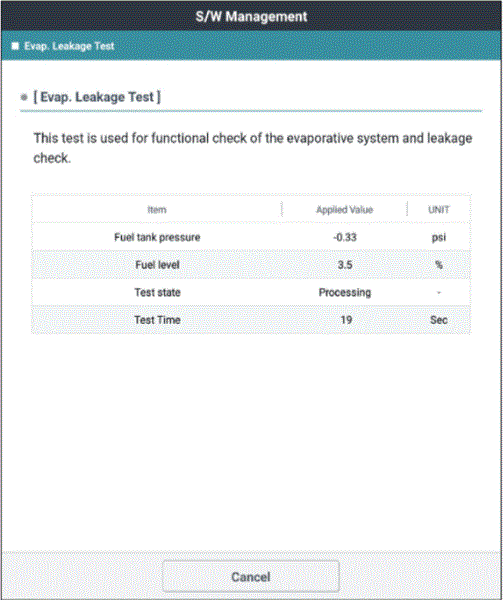

Proceed with the test according to the screen instructions.
NOTE:
Test condtion
- Vehicle stopped
- Fuel level below 15-85%
- No DTC
- Idle state
- Engine warmup [Engine coolant temerature above 80°C (176°F)]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
