Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.

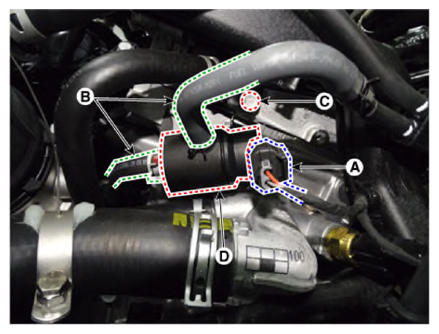

- Disconnect the purge control solenoid valve connector (A) and vapor hose (B).
- Remove the purge control solenoid valve (D) after loosening the mounting bolt (C).
Tightening torque
:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
