Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative (-) terminal.
- Remove the fuel tank.
(Refer to Engine Control/Fuel System - "FUEL TANK ")

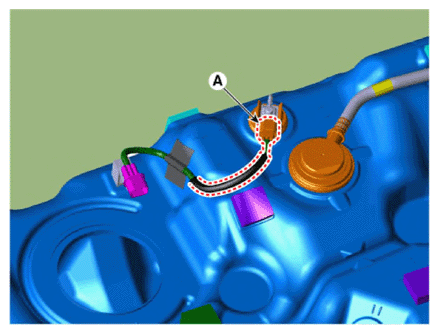

- Disconnect the fuel tank pressure sensor connector (A).

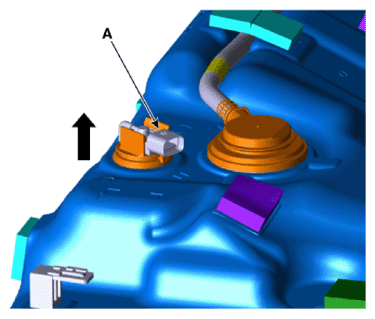

- Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.
