Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative (-) terminal.

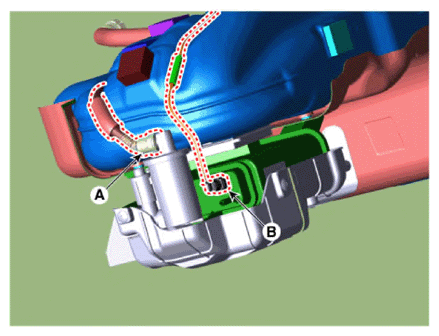

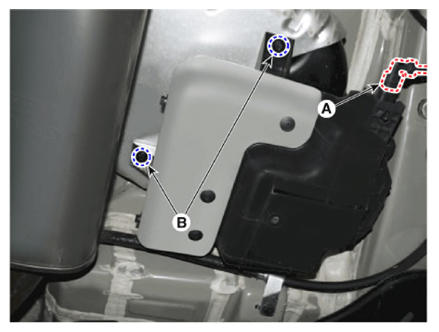

Disconnect the canister close valve connector (A).
Loosening the canister mounting bolts (B).

Courtesy of KIA MOTORS AMERICA, INC.

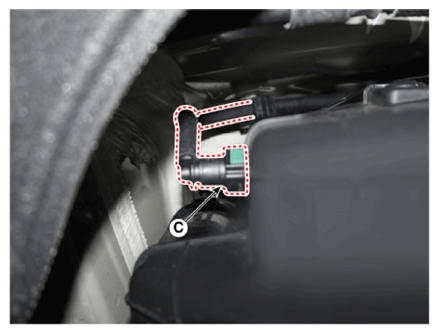

Remove the canister assembly after Disconnecting the ventilation hose quick-connector (A) and vapor hose quick-connector (B, C).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

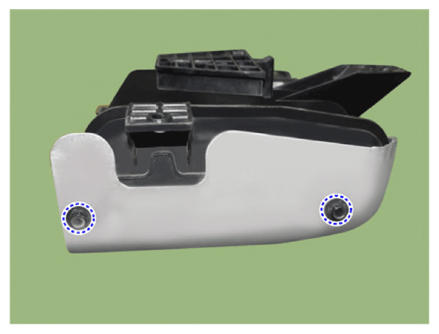

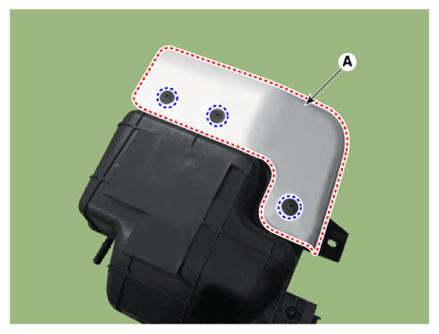

Remove the canister protector (A) after loosening bolt & clips.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

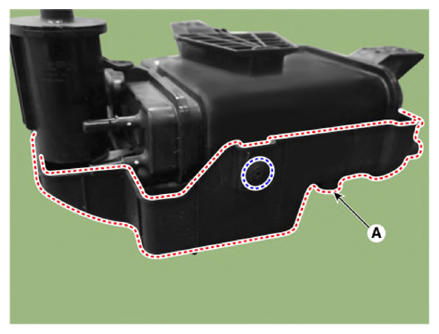

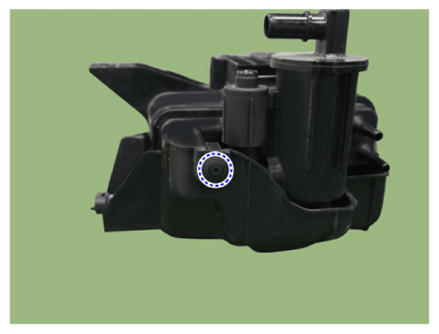

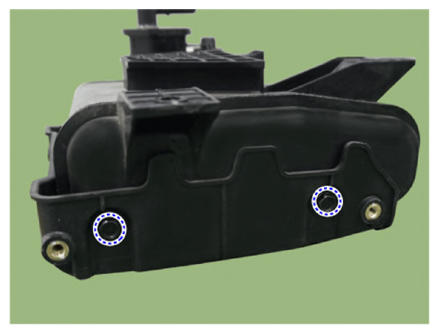

Remove the canister cover (A) after loosening bolt & clips.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

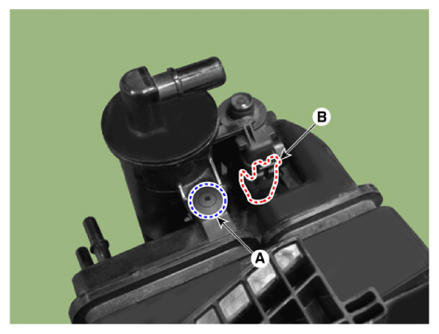

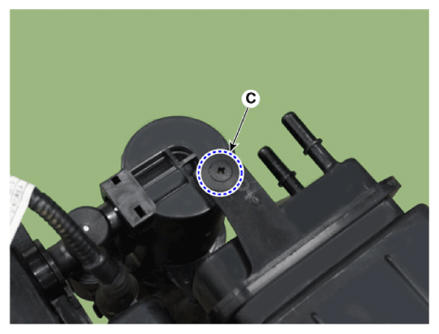

Disconnect the Clip (A, C) and canister close valve connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

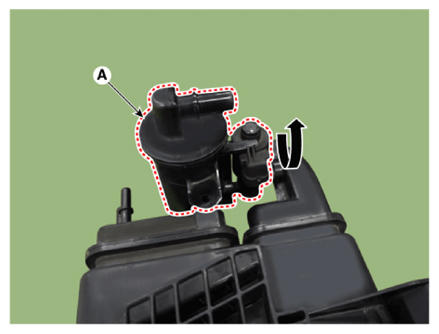

Separate the fuel tank air filter & canister close valve (A) from the canister after rotating it in the direction of the arrow in the figure.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
