Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Evaporative Emission Control System - "CANISTER ")

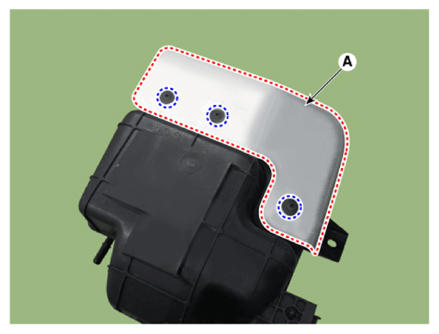

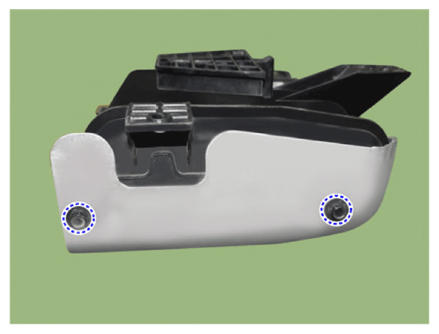

  3. Remove the canister protector (A) after loosening bolt & clips.
    G13482949Courtesy of KIA MOTORS AMERICA, INC.
    G13482950Courtesy of KIA MOTORS AMERICA, INC.

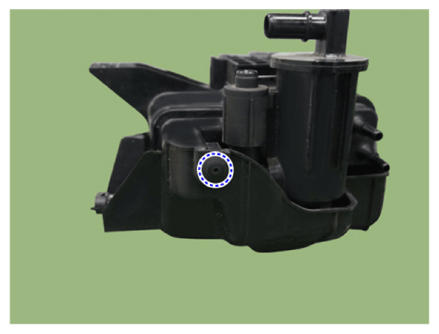

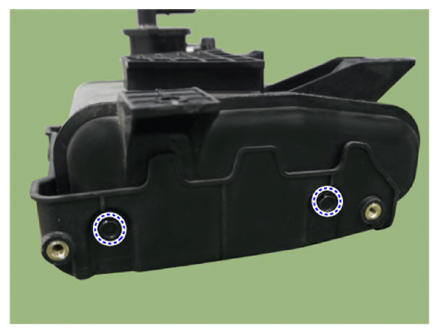

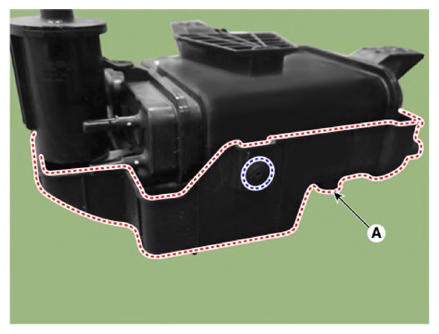

  4. Remove the canister cover (A) after loosening bolt & clips.
    G13482951Courtesy of KIA MOTORS AMERICA, INC.
    G13482952Courtesy of KIA MOTORS AMERICA, INC.
    G13482953Courtesy of KIA MOTORS AMERICA, INC.

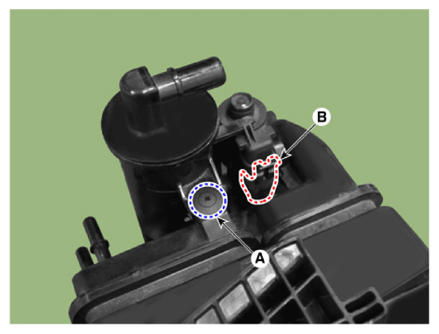

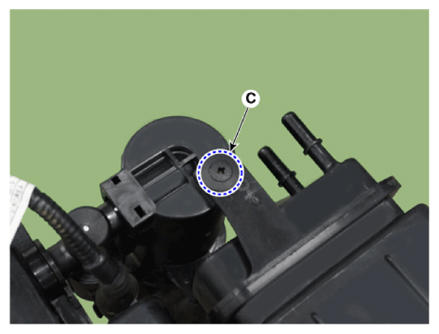

  5. Disconnect the Clip (A, C) and canister close valve connector (B).
    G13482954Courtesy of KIA MOTORS AMERICA, INC.
    G13482955Courtesy of KIA MOTORS AMERICA, INC.

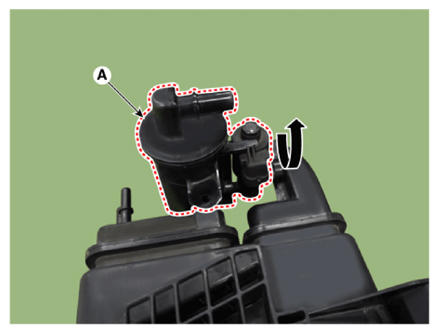

  6. Separate the fuel tank air filter & canister close valve (A) from the canister after rotating it in the direction of the arrow in the figure.
    G13482956Courtesy of KIA MOTORS AMERICA, INC.

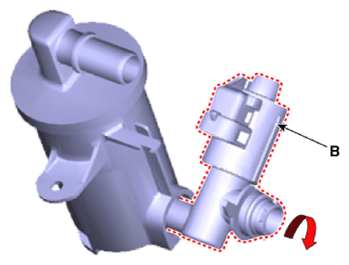

  7. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G13482957Courtesy of KIA MOTORS AMERICA, INC.
    G13482958Courtesy of KIA MOTORS AMERICA, INC.
