Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the (-) battery terminal.
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

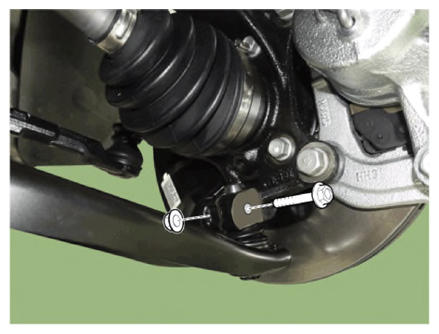

Loosen the lower arm mounting bolt and nut.
Tightening torque:

58.8 - 70.6 N.m (6.0 - 7.2 kgf.m, 43.4 - 52.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Detach the front lower arm from the front knuckle using the SST (0K545-A9100).

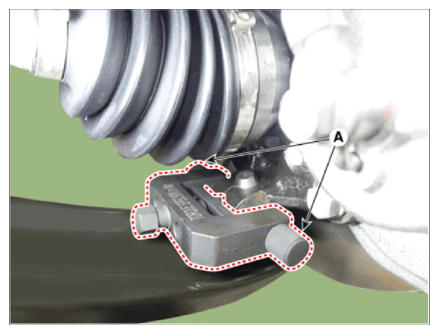

After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

G13481265

Courtesy of KIA MOTORS AMERICA, INC.

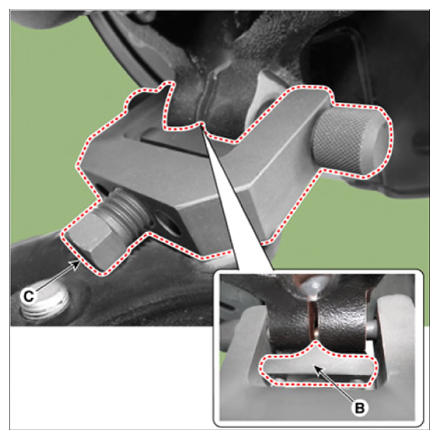

Insert the sub body (B) between the front knuckle and the sub body bolt.

Tighten the bolt (C) sub body to broaden the gap of the front knuckle.

G13481266

Courtesy of KIA MOTORS AMERICA, INC.

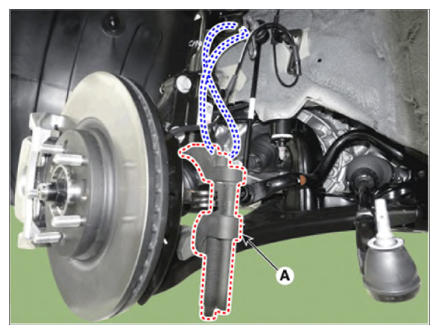

Install the main body (A) after fixing it with a wire to prevent SST from falling.

G13481267

Courtesy of KIA MOTORS AMERICA, INC.

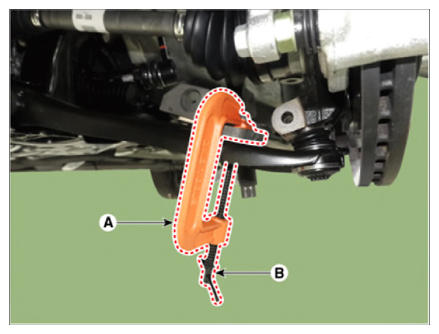

After installing the body (A), rotate the handle (B) clockwise until the clamp is fixed on the lower arm.

G13481268

Courtesy of KIA MOTORS AMERICA, INC.

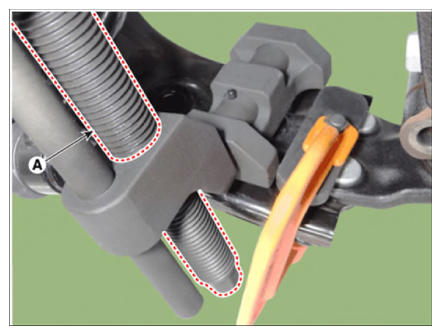

Tighten the main body bolt (A) slowly and remove the lower arm from the front knuckle.

G13481269

Courtesy of KIA MOTORS AMERICA, INC.

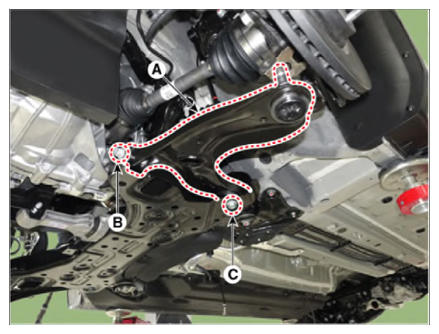

Tightening torque:

B: 117.6 - 137.2 N.m (12.0 - 14.0 kgf.m, 86.7 - 101.2 lb.ft)

C: 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.1 lb.ft)

G13481270

Courtesy of KIA MOTORS AMERICA, INC.
