Circuit Diagram

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

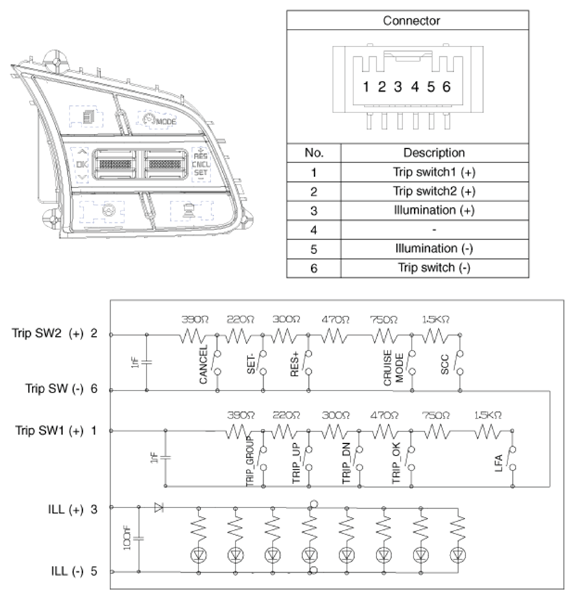

Fig 1: Smart Cruise Control (SCC) Switch Connector End View And Terminal Description
G13482431Courtesy of KIA MOTORS AMERICA, INC.
