Forward Collision-avoidance Assist (FCA)
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Operation specification

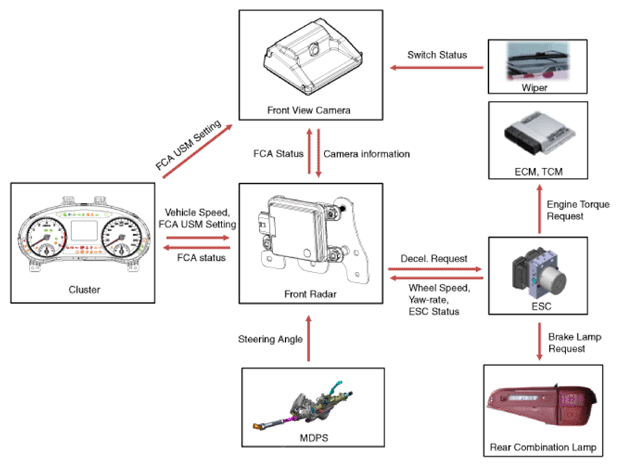

Item Sensor fusion (Front view camera unit + Front radar unit) Car Car Pedestrian Cyclist Operation speed (Wheel speed) Warning 10 - 180 km/h (6 - 112 mile/h) 10 - 180 km/h (6 - 112 mile/h) 10 ~ 85 km/h (6 - 52 mile/h) 10 ~ 85 km/h (6 - 52 mile/h) FULL Braking 10 ~ 75 km/h (6 - 46 mile/h) 10 ~ 85 km/h (6 - 53 mile/h) 10 ~ 65 km/h (6 - 40 mile/h) 10 ~ 65 km/h (6 - 40 mile/h) Remarks Stationary Moving vehicle - Vehicle direction of travel Warning level Warning Visible/Audible warning FULL Braking Visible/Audible warning + Engine drag + Full braking Alarm sensitivity (User setting menu) Normal - Late - System components

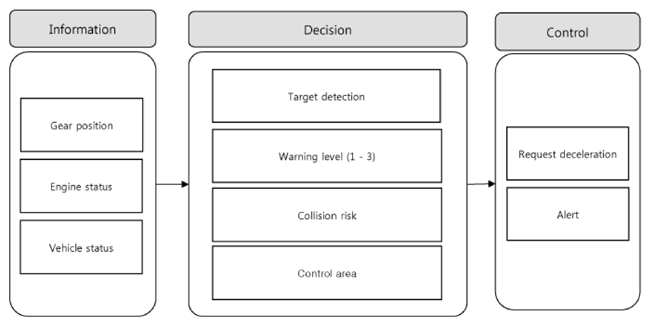

- System block diagram

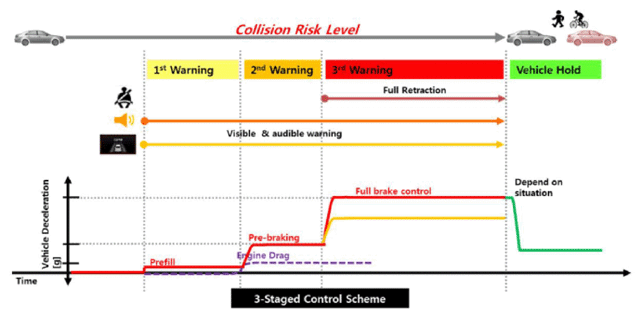

- System operation
